June 2020 p41 q1
3713

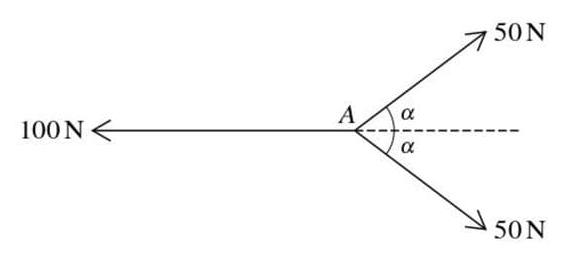

Three coplanar forces of magnitudes 100 N, 50 N, and 50 N act at a point A, as shown in the diagram. The value of \(\cos \alpha\) is \(\frac{4}{5}\).
Find the magnitude of the resultant of the three forces and state its direction.

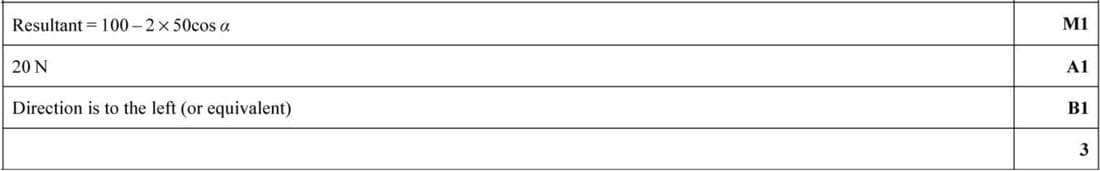

Solution
The forces acting at point A are 100 N to the left, and two 50 N forces at angles \(\alpha\) to the horizontal. The horizontal component of each 50 N force is \(50 \cos \alpha\).
The total horizontal component of the two 50 N forces is \(2 \times 50 \cos \alpha = 100 \cos \alpha\).
Given \(\cos \alpha = \frac{4}{5}\), the total horizontal component becomes \(100 \times \frac{4}{5} = 80\) N.
The resultant force is the difference between the 100 N force and the total horizontal component of the two 50 N forces:
\(100 - 80 = 20 \text{ N}\)
The direction of the resultant force is to the left.
