Nov 2008 p4 q1
3704

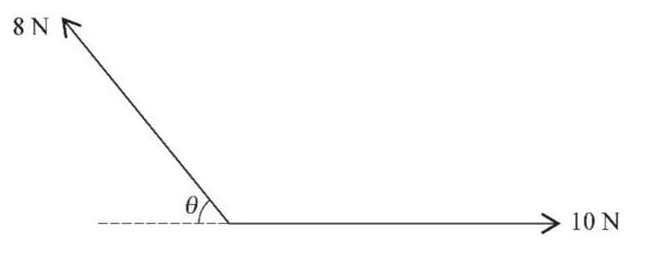

Forces of magnitudes 10 N and 8 N act in directions as shown in the diagram.
(i) Write down in terms of \(\theta\) the component of the resultant of the two forces
parallel to the force of magnitude 10 N,
perpendicular to the force of magnitude 10 N.
(ii) The resultant of the two forces has magnitude 8 N. Show that \(\cos \theta = \frac{5}{8}\).

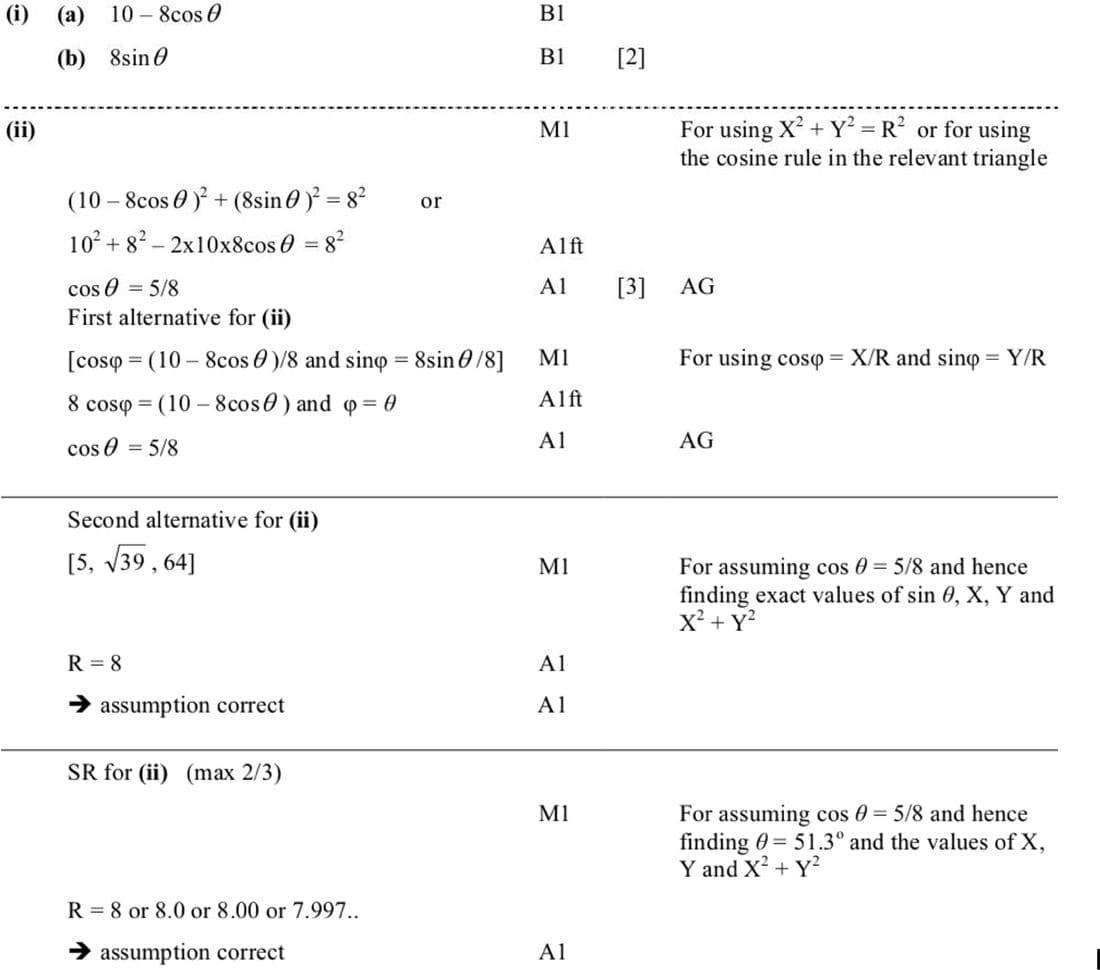

Solution
(i) To find the components of the 8 N force:
Parallel to the 10 N force: The component is \(8 \cos \theta\). Therefore, the resultant component parallel to the 10 N force is \(10 - 8 \cos \theta\).
Perpendicular to the 10 N force: The component is \(8 \sin \theta\).
(ii) The magnitude of the resultant force is given as 8 N. Using the Pythagorean theorem for the components:
