9709 P41 - Jun 2010 - Q4
3700

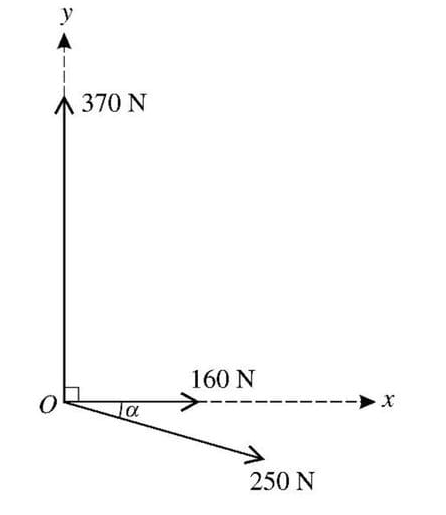

Coplanar forces of magnitudes 250 N, 160 N, and 370 N act at a point O in the directions shown in the diagram, where the angle \(\alpha\) is such that \(\sin \alpha = 0.28\) and \(\cos \alpha = 0.96\). Calculate the magnitude of the resultant of the three forces. Calculate also the angle that the resultant makes with the x-direction.

problem image 3700
