9709 P43 - Nov 2015 - Q3
3687

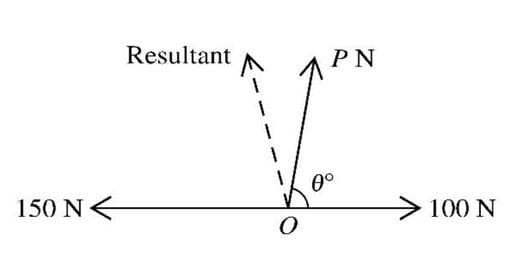

Three horizontal forces of magnitudes 150 N, 100 N, and \(P\) N have directions as shown in the diagram. The resultant of the three forces is shown by the broken line in the diagram. This resultant has magnitude 120 N and makes an angle 75° with the 150 N force. Find the values of \(P\) and \(\theta\).

problem image 3687
