Feb/Mar 2016 p42 q3
3686

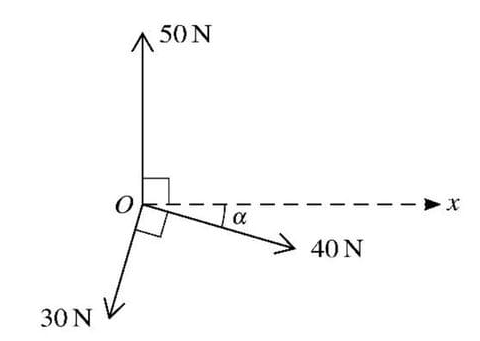

Coplanar forces of magnitudes 50 N, 40 N, and 30 N act at a point O in the directions shown in the diagram, where \(\tan \alpha = \frac{7}{24}\).

(i) Find the magnitude and direction of the resultant of the three forces.

(ii) The force of magnitude 50 N is replaced by a force of magnitude \(P\) N acting in the same direction. The resultant of the three forces now acts in the positive \(x\)-direction. Find the value of \(P\).

problem image 3686
