Nov 2017 p43 q1
3682

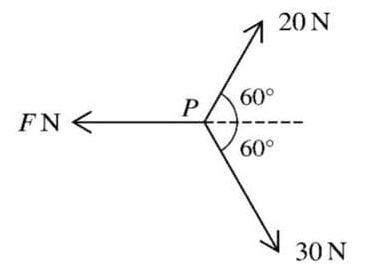

Three coplanar forces of magnitudes \(F \text{ N}\), \(20 \text{ N}\) and \(30 \text{ N}\) act at a point \(P\), as shown in the diagram. The resultant of the three forces acts in a direction perpendicular to the force of magnitude \(F \text{ N}\). Find the value of \(F\).

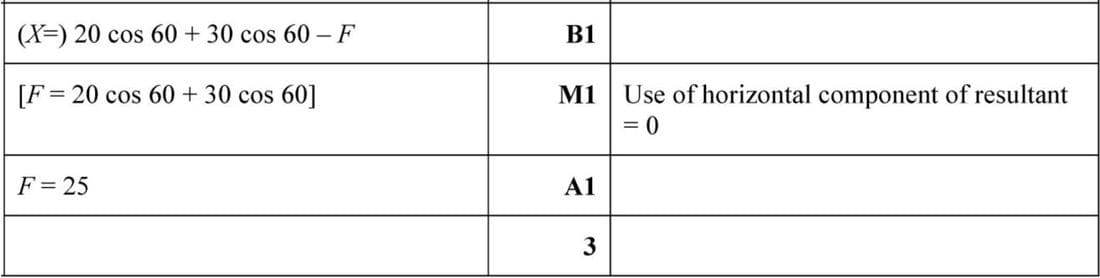

Solution
To find the value of \(F\), we need to consider the horizontal components of the forces, as the resultant is perpendicular to \(F\).
The horizontal component of the \(20 \text{ N}\) force is \(20 \cos 60^\circ\).
The horizontal component of the \(30 \text{ N}\) force is \(30 \cos 60^\circ\).
The horizontal component of the \(F \text{ N}\) force is \(-F\) (since it acts to the left).
Since the resultant is perpendicular to \(F\), the sum of the horizontal components must be zero:
