9709 P41 - Jun 2023 - Q5
3680

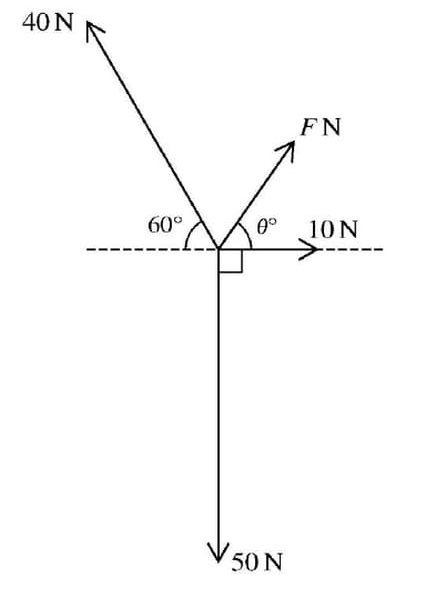

Four coplanar forces act at a point. The magnitudes of the forces are \(F \text{ N}\), \(10 \text{ N}\), \(50 \text{ N}\) and \(40 \text{ N}\). The directions of the forces are as shown in the diagram.

(a) Given that the forces are in equilibrium, find the value of \(F\) and the value of \(\theta\).

(b) Given instead that \(F = 10\sqrt{2}\) and \(\theta = 45\), find the direction and the exact magnitude of the resultant force.

problem image 3680
