Nov 2018 p42 q1
3676

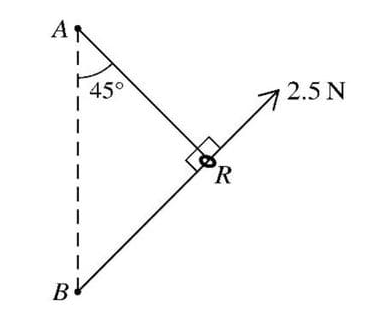

A smooth ring R of mass m kg is threaded on a light inextensible string ARB. The ends of the string are attached to fixed points A and B with A vertically above B. The string is taut and angle ARB = 90°. The angle between the part AR of the string and the vertical is 45°. The ring is held in equilibrium in this position by a force of magnitude 2.5 N, acting on the ring in the direction BR (see diagram). Calculate the tension in the string and the mass of the ring.

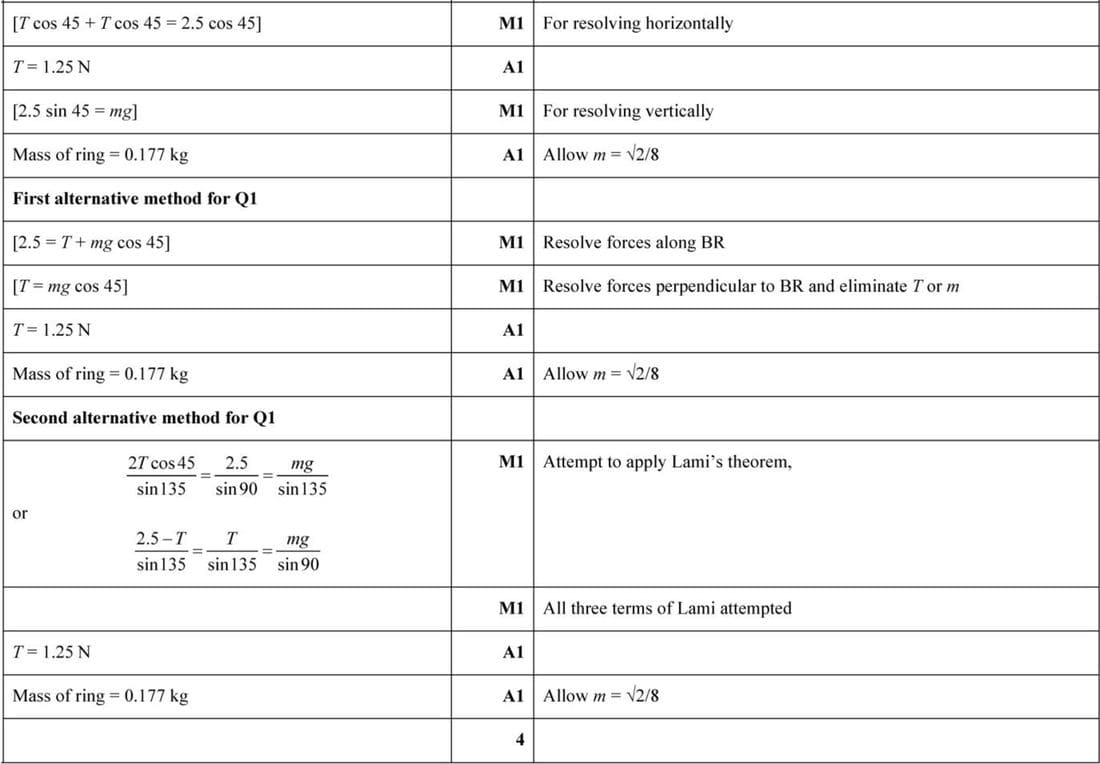

Solution
To solve this problem, we resolve the forces acting on the ring R in both horizontal and vertical directions.
1. Resolve horizontally: The horizontal component of the tension T in the string is balanced by the horizontal component of the 2.5 N force.
