9709 P42 - Nov 2022 - Q3
3667

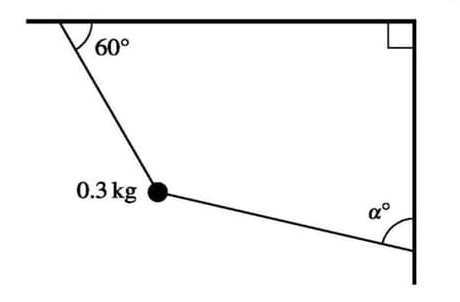

A particle of mass 0.3 kg is held at rest by two light inextensible strings. One string is attached at an angle of 60° to a horizontal ceiling. The other string is attached at an angle \(\alpha\)° to a vertical wall (see diagram). The tension in the string attached to the ceiling is 4 N.

Find the tension in the string which is attached to the wall and find the value of \(\alpha\).

problem image 3667
Solutions locked. Please sign in with access to view them.
