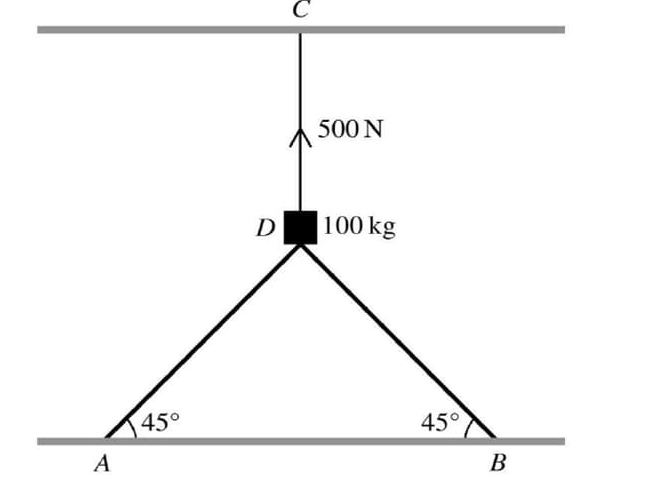

The diagram shows a block D of mass 100 kg supported by two sloping struts AD and BD, each attached at an angle of 45° to fixed points A and B respectively on a horizontal floor. The block is also held in place by a vertical rope CD attached to a fixed point C on a horizontal ceiling. The tension in the rope CD is 500 N and the block rests in equilibrium.

(a) Find the magnitude of the force in each of the struts AD and BD.

A horizontal force of magnitude F N is applied to the block in a direction parallel to AB.

(b) Find the value of F for which the magnitude of the force in the strut AD is zero.
