Nov 2017 p42 q2
3652

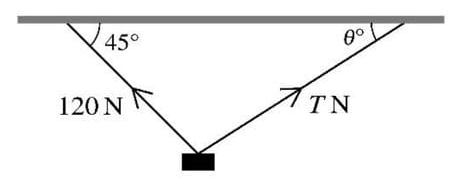

A block of mass 15 kg hangs in equilibrium below a horizontal ceiling attached to two strings as shown in the diagram. One of the strings is inclined at 45° to the horizontal and the tension in this string is 120 N. The other string is inclined at θ° to the horizontal and the tension in this string is T N. Find the values of T and θ.

problem image 3652
