9709 P43 - Nov 2023 - Q5
3651

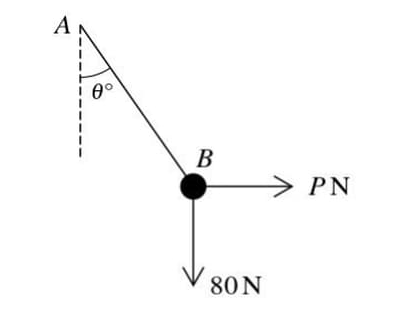

A light string AB is fixed at A and has a particle of weight 80 N attached at B. A horizontal force of magnitude P N is applied at B such that the string makes an angle θ° to the vertical (see diagram).

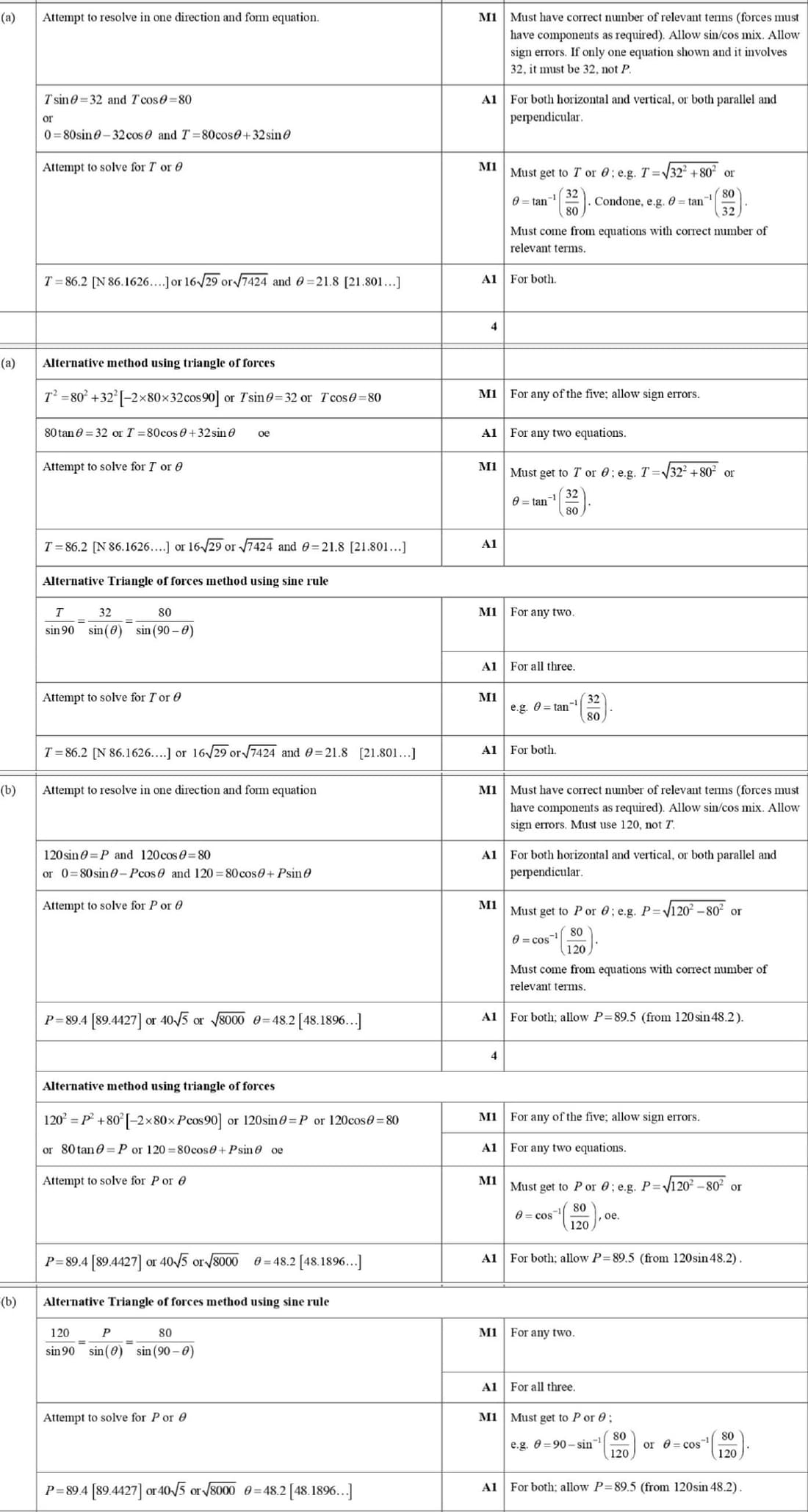

\((a) It is given that P = 32 and the system is in equilibrium. Find the tension in the string and the value of θ.\)

(b) It is given instead that the tension in the string is 120 N and that the particle attached at B still has weight 80 N. Find the value of P and the value of θ.

problem image 3651
