Nov 2021 p41 q3
3645

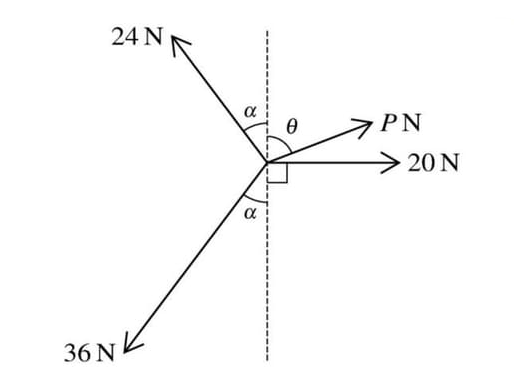

Coplanar forces of magnitudes 24 N, P N, 20 N, and 36 N act at a point in the directions shown in the diagram. The system is in equilibrium. Given that \(\sin \alpha = \frac{3}{5}\), find the values of \(P\) and \(\theta\).
Solution
Since the system is in equilibrium, the sum of the forces in any direction is zero. We resolve the forces horizontally and vertically.
