9709 P42 - Jun 2012 - Q2
3640

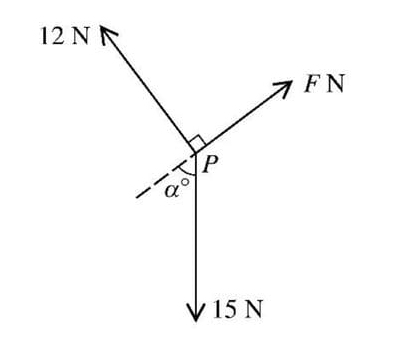

Three coplanar forces of magnitudes \(F\) N, 12 N, and 15 N are in equilibrium acting at a point \(P\) in the directions shown in the diagram. Find \(\alpha\) and \(F\).

problem image 3640
