June 2016 p41 q4
3636

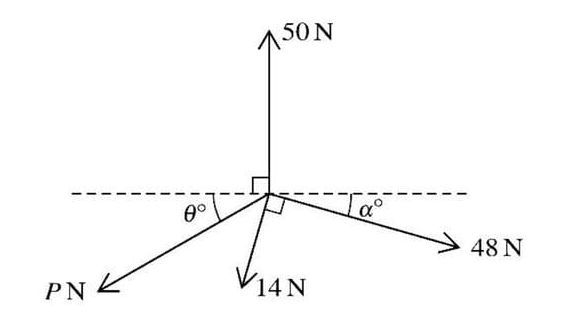

Coplanar forces of magnitudes 50 N, 48 N, 14 N and P N act at a point in the directions shown in the diagram. The system is in equilibrium. Given that \(\tan \alpha = \frac{7}{24}\), find the values of P and \(\theta\).

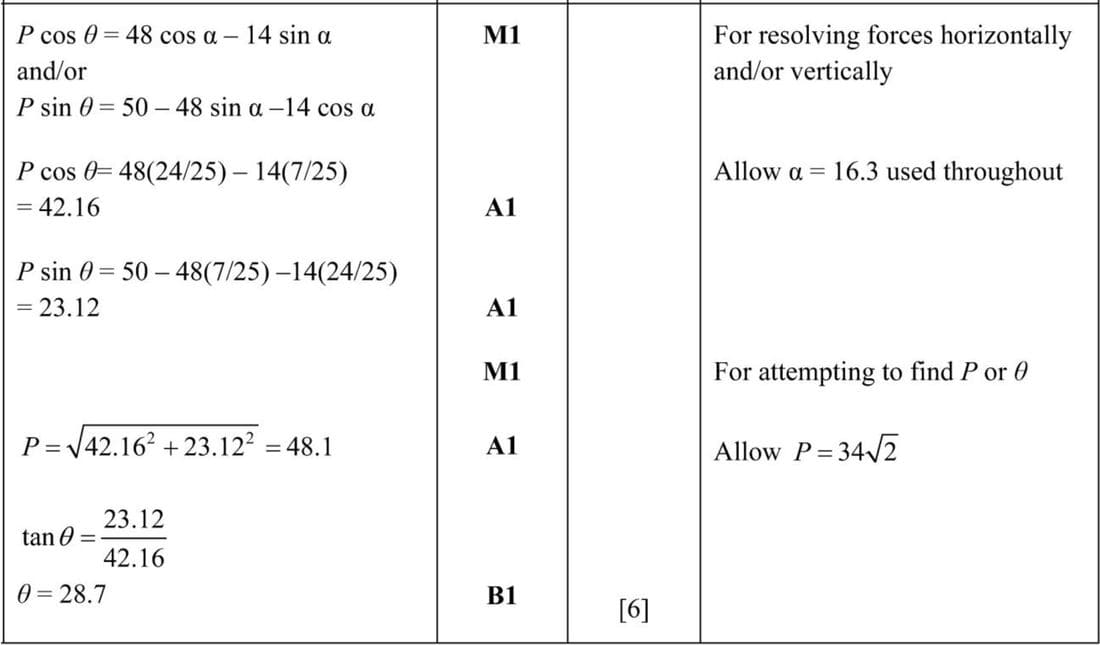

Solution
To solve for \(P\) and \(\theta\), we resolve the forces horizontally and vertically.
Given \(\tan \alpha = \frac{7}{24}\), we have \(\cos \alpha = \frac{24}{25}\) and \(\sin \alpha = \frac{7}{25}\).
