Nov 2016 p41 q4
3634

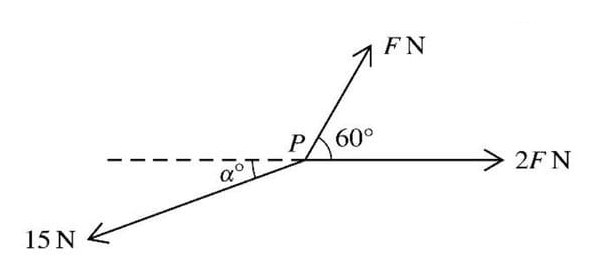

Three coplanar forces of magnitudes \(F\) N, \(2F\) N and 15 N act at a point \(P\), as shown in the diagram. Given that the forces are in equilibrium, find the values of \(F\) and \(\alpha\).
Solution
To solve for \(F\) and \(\alpha\), we resolve the forces horizontally and vertically, using the fact that the forces are in equilibrium.
First, resolve horizontally:
\(2F + F \cos 60^\circ = 15 \cos \alpha\)
Next, resolve vertically:
\(F \sin 60^\circ = 15 \sin \alpha\)

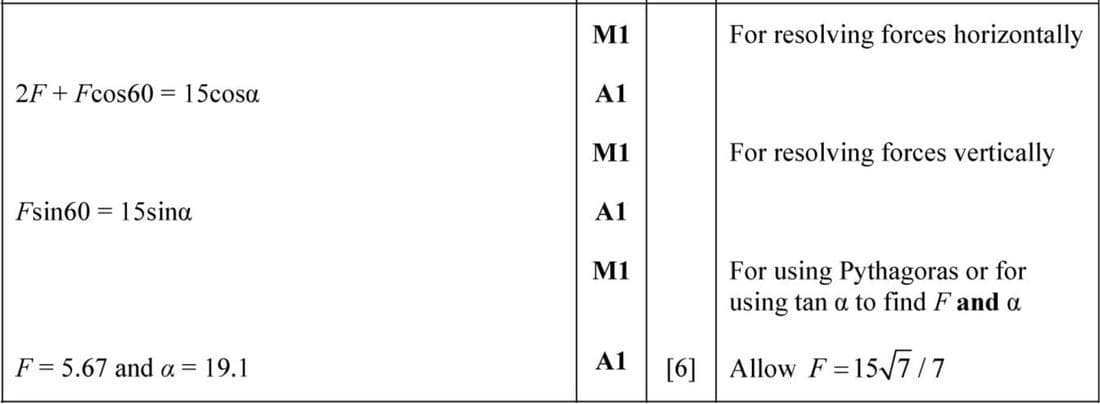

Using these two equations, we can solve for \(F\) and \(\alpha\). From the mark scheme, we have:
