Feb/Mar 2018 p42 q2
3632

The three coplanar forces shown in the diagram are in equilibrium. Find the values of \(\theta\) and \(P\).

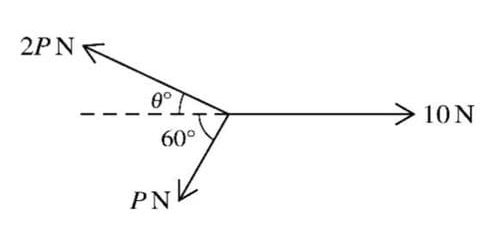

The diagram shows forces: \(2P \text{ N}\) at an angle \(\theta\) above the horizontal, \(P \text{ N}\) at an angle \(60^\circ\) below the horizontal, and \(10 \text{ N}\) horizontally to the right.

problem image 3632
