9709 P41 - Jun 2018 - Q2
3631

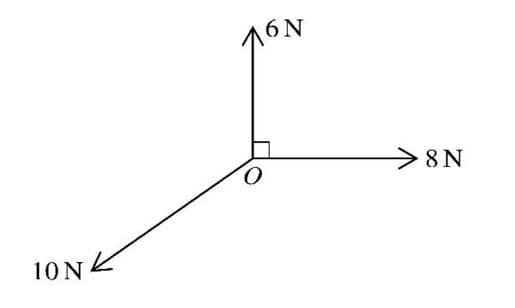

The diagram shows three coplanar forces acting at the point O. The magnitudes of the forces are 6 N, 8 N, and 10 N. The angle between the 6 N force and the 8 N force is 90°. The forces are in equilibrium. Find the other angles between the forces.

problem image 3631
