9709 P4 - Nov 2003 - Q3
3619

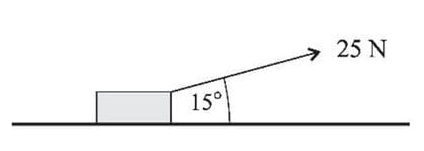

A crate of mass 3 kg is pulled at constant speed along a horizontal floor. The pulling force has magnitude 25 N and acts at an angle of 15° to the horizontal, as shown in the diagram. Find

  1. the work done by the pulling force in moving the crate a distance of 2 m,
  2. the normal component of the contact force on the crate.
problem image 3619
Solutions locked. Please sign in with access to view them.
