9709 P4 - Nov 2006 - Q5
3582

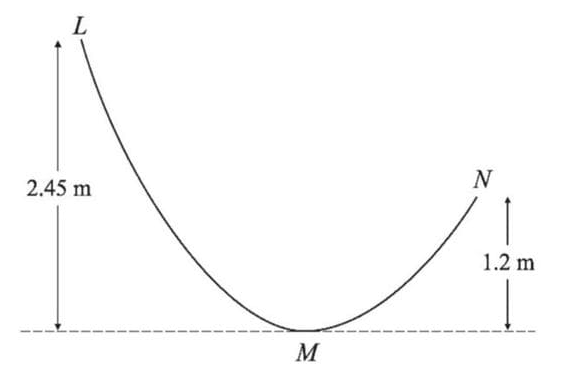

The diagram shows the vertical cross-section LMN of a fixed smooth surface. M is the lowest point of the cross-section. L is 2.45 m above the level of M, and N is 1.2 m above the level of M. A particle of mass 0.5 kg is released from rest at L and moves on the surface until it leaves it at N. Find
- the greatest speed of the particle,
- the kinetic energy of the particle at N.
The particle is now projected from N, with speed v m s-1, along the surface towards M.
- Find the least value of v for which the particle will reach L.
