June 2007 p4 q5
3580

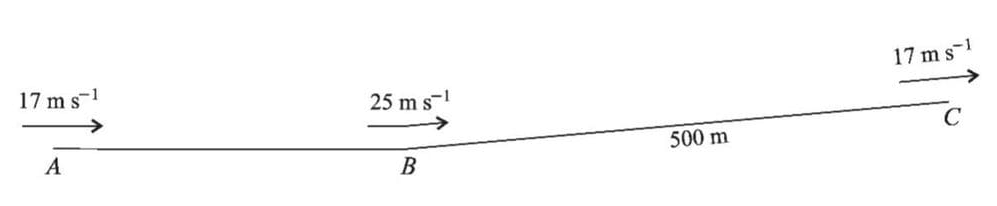

A lorry of mass 12,500 kg travels along a road that has a straight horizontal section AB and a straight inclined section BC. The length of BC is 500 m. The speeds of the lorry at A, B, and C are 17 m/s, 25 m/s, and 17 m/s respectively (see diagram).

(i) The work done against the resistance to motion of the lorry, as it travels from A to B, is 5000 kJ. Find the work done by the driving force as the lorry travels from A to B.

(ii) As the lorry travels from B to C, the resistance to motion is 4800 N and the work done by the driving force is 3300 kJ. Find the height C above the level of AB.

problem image 3580
