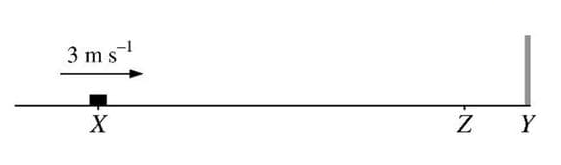

The frictional force acting on a small block of mass 0.15 kg, while it is moving on a horizontal surface, has magnitude 0.12 N. The block is set in motion from a point X on the surface, with speed 3 m/s^-1. It hits a vertical wall at a point Y on the surface 2 s later. The block rebounds from the wall and moves directly towards X before coming to rest at the point Z (see diagram). At the instant that the block hits the wall it loses 0.072 J of its kinetic energy. The velocity of the block, in the direction from X to Y, is v m/s^-1 at time t s after it leaves X.

1. Find the values of v when the block arrives at Y and when it leaves Y, and find also the value of t when the block comes to rest at Z. Sketch the velocity-time graph.
2. The displacement of the block from X, in the direction from X to Y, is s m at time t s. Sketch the displacement-time graph. Show on your graph the values of s and t when the block is at Y and when it comes to rest at Z.
