Nov 2012 p43 q1
3552

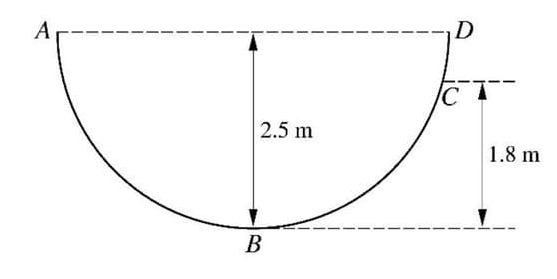

ABCD is a semi-circular cross-section, in a vertical plane, of the inner surface of half a hollow cylinder of radius 2.5 m which is fixed with its axis horizontal. AD is horizontal, B is the lowest point of the cross-section and C is at a height of 1.8 m above the level of B (see diagram). A particle P of mass 0.8 kg is released from rest at A and comes to instantaneous rest at C.

(i) Find the work done on P by the resistance to motion while P travels from A to C.

The work done on P by the resistance to motion while P travels from A to B is 0.6 times the work done while P travels from A to C.

(ii) Find the speed of P when it passes through B.

problem image 3552
