June 2014 p42 q5
3547

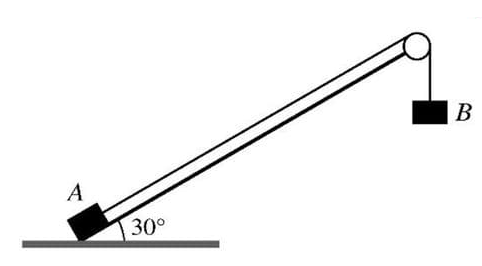

A light inextensible rope has a block A of mass 5 kg attached at one end, and a block B of mass 16 kg attached at the other end. The rope passes over a smooth pulley which is fixed at the top of a rough plane inclined at an angle of 30° to the horizontal. Block A is held at rest at the bottom of the plane and block B hangs below the pulley (see diagram). The coefficient of friction between A and the plane is \(\frac{1}{\sqrt{3}}\). Block A is released from rest and the system starts to move. When each of the blocks has moved a distance of \(x\) m each has speed \(v\) m s-1.

  1. Write down the gain in kinetic energy of the system in terms of \(v\).
  2. Find, in terms of \(x\),
    1. the loss of gravitational potential energy of the system,
    2. the work done against the frictional force.
  3. Show that \(21v^2 = 220x\).
problem image 3547
