9709 P41 - Nov 2016 - Q6
3532
A block of mass 25 kg is pulled along horizontal ground by a force of magnitude 50 N inclined at 10° above the horizontal. The block starts from rest and travels a distance of 20 m. There is a constant resistance force of magnitude 30 N opposing motion.
- Find the work done by the pulling force.
- Use an energy method to find the speed of the block when it has moved a distance of 20 m.
- Find the greatest power exerted by the 50 N force.

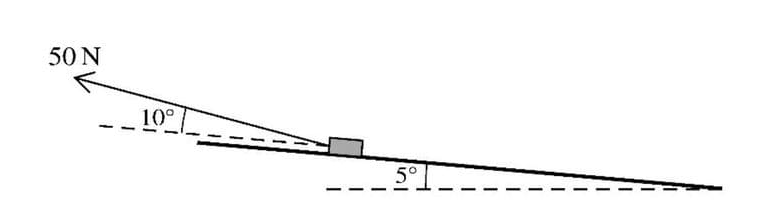

After the block has travelled the 20 m, it comes to a plane inclined at 5° to the horizontal. The force of 50 N is now inclined at an angle of 10° to the plane and pulls the block directly up the plane (see diagram). The resistance force remains 30 N.
- Find the time it takes for the block to come to rest from the instant when it reaches the foot of the inclined plane.
