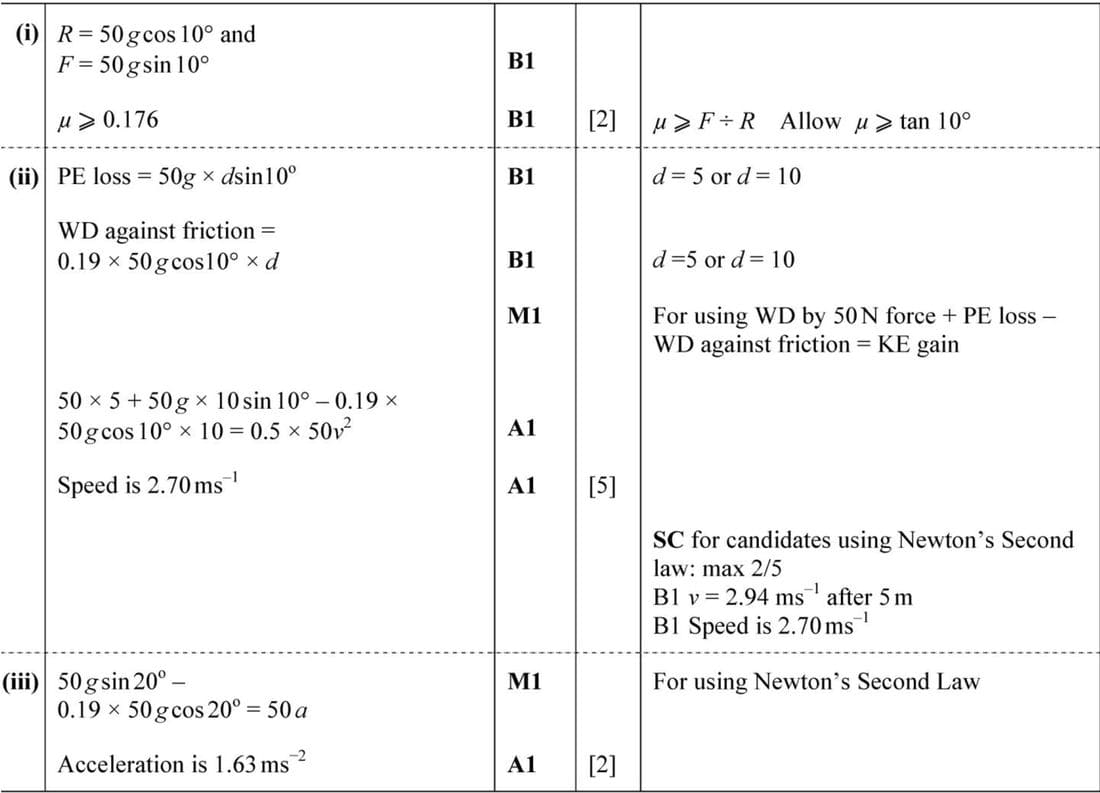

9709 P43 - Nov 2016 - Q7
3531
A box of mass 50 kg is at rest on a plane inclined at 10° to the horizontal.
- Find an inequality for the coefficient of friction between the box and the plane. [2]
In fact the coefficient of friction between the box and the plane is 0.19.
- A girl pushes the box with a force of 50 N, acting down a line of greatest slope of the plane, for a distance of 5 m. She then stops pushing. Use an energy method to find the speed of the box when it has travelled a further 5 m. [5]
The box then comes to a plane inclined at 20° below the horizontal. The box moves down a line of greatest slope of this plane. The coefficient of friction is still 0.19 and the girl is not pushing the box.
- Find the acceleration of the box. [2]
