June 2017 p42 q2
3528

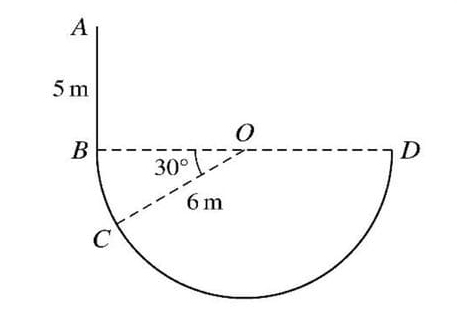

The diagram shows a wire ABCD consisting of a straight part AB of length 5 m and a part BCD in the shape of a semicircle of radius 6 m and centre O. The diameter BD of the semicircle is horizontal and AB is vertical. A small ring is threaded onto the wire and slides along the wire. The ring starts from rest at A. The part AB of the wire is rough, and the ring accelerates at a constant rate of 2.5 m/s2 between A and B.
Show that the speed of the ring as it reaches B is 5 m/s-1. [1]
The part BCD of the wire is smooth. The mass of the ring is 0.2 kg.
(a) Find the speed of the ring at C, where angle BOC = 30°. [4]
(b) Find the greatest speed of the ring. [2]

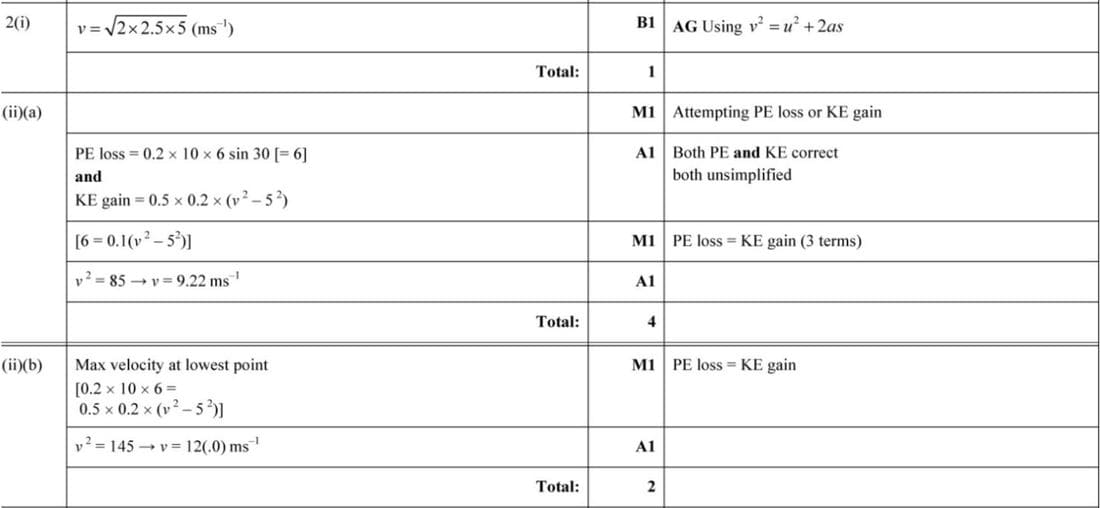

Solution
(i) To find the speed of the ring as it reaches B, use the equation of motion:
\(v^2 = u^2 + 2as\)
where \(u = 0\) (initial speed), \(a = 2.5\) m/s2 (acceleration), and \(s = 5\) m (distance).
\(v^2 = 0 + 2 \times 2.5 \times 5\)
\(v^2 = 25\)
\(v = 5\) m/s
(ii)(a) To find the speed of the ring at C, use energy conservation:
