(i) For a smooth plane, use energy conservation. The initial kinetic energy (KE) is converted into potential energy (PE) as the particle moves up the plane.
Initial KE: \(\frac{1}{2} \times 18 \times 20^2\)
PE gain: \(18g \sin 30^{\circ} \times s\)
Equating KE loss to PE gain:
\(\frac{1}{2} \times 18 \times 20^2 = 18g \sin 30^{\circ} \times s\)
Solving for \(s\):
\(s = 40 \text{ m}\)
(ii) For a rough plane, consider both friction and gravitational components.
Normal reaction \(R = 18g \cos 30^{\circ}\)
Friction \(F = 0.25 \times R\)
Using Newton's second law, find acceleration \(a\):
\(18g \sin 30^{\circ} - 0.25 \times 18g \cos 30^{\circ} = 18a\)
\(a = -7.165 \text{ m/s}^2\)

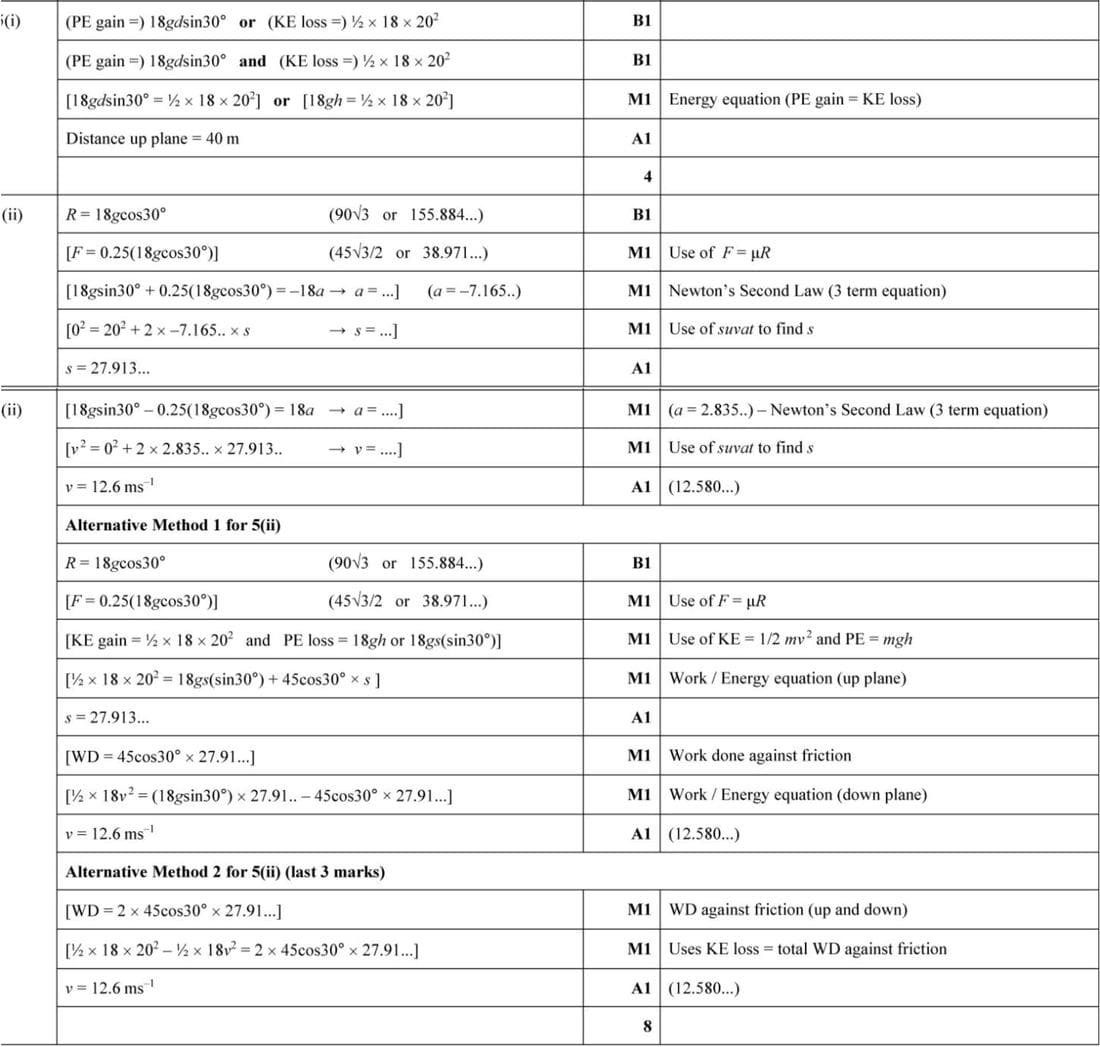

Using \(s = 27.913 \text{ m}\) from the mark scheme, find the speed \(v\) as it returns:
\(v^2 = 0^2 + 2 \times 2.835 \times 27.913\)
\(v = 12.6 \text{ m/s}\)
