June 2023 p43 q7
3515

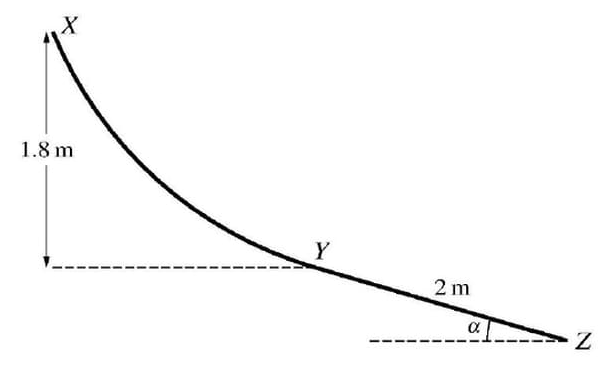

The diagram shows the vertical cross-section XYZ of a rough slide. The section YZ is a straight line of length 2 m inclined at an angle of \(\alpha\) to the horizontal, where \(\sin \alpha = 0.28\). The section YZ is tangential to the curved section XY at Y, and X is 1.8 m above the level of Y. A child of mass 25 kg slides down the slide, starting from rest at X. The work done by the child against the resistance force in moving from X to Y is 50 J.

(a) Find the speed of the child at Y.

It is given that the child comes to rest at Z.

(b) Use an energy method to find the coefficient of friction between the child and YZ, giving your answer as a fraction in its simplest form.

problem image 3515
