Nov 2020 p41 q6
3510

A car of mass 1500 kg is pulling a trailer of mass 750 kg up a straight hill of length 800 m inclined at an angle of \(\sin^{-1} 0.08\) to the horizontal. The resistances to the motion of the car and trailer are 400 N and 200 N respectively. The car and trailer are connected by a light rigid tow-bar. The car and trailer have speed 30 m/s at the bottom of the hill and 20 m/s at the top of the hill.

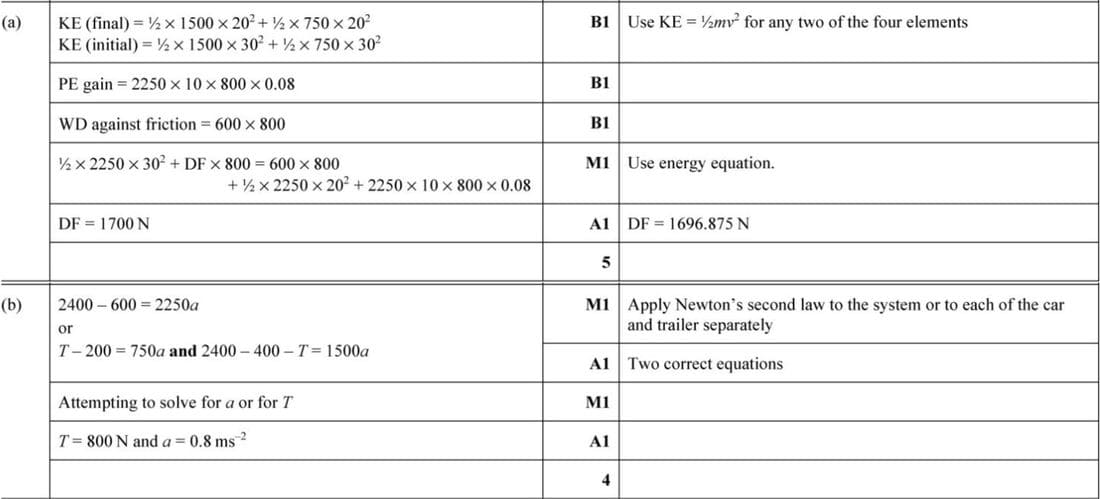

(a) Use an energy method to find the constant driving force as the car and trailer travel up the hill. [5]

After reaching the top of the hill the system consisting of the car and trailer travels along a straight level road. The driving force of the car’s engine is 2400 N and the resistances to motion are unchanged.

(b) Find the acceleration of the system and the tension in the tow-bar. [4]
