9709 P42 - Nov 2021 - Q3
3500

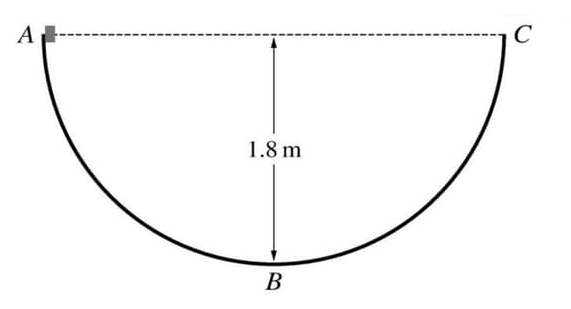

The diagram shows a semi-circular track ABC of radius 1.8 m which is fixed in a vertical plane. The points A and C are at the same horizontal level and the point B is at the bottom of the track. The section AB is smooth and the section BC is rough. A small block is released from rest at A.

(a) Show that the speed of the block at B is 6 m s-1.

The block comes to instantaneous rest for the first time at a height of 1.2 m above the level of B. The work done against the resistance force during the motion of the block from B to this point is 4.5 J.

(b) Find the mass of the block.

problem image 3500
Solutions locked. Please sign in with access to view them.
