9709 P42 - Nov 2021 - Q7
3386

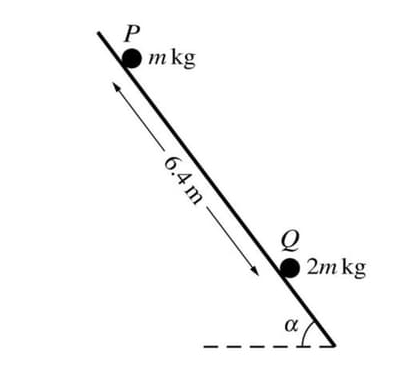

Particles P and Q have masses m kg and 2m kg respectively. The particles are initially held at rest 6.4 m apart on the same line of greatest slope of a rough plane inclined at an angle α to the horizontal, where \\sin α = 0.8\\ (see diagram). Particle P is released from rest and slides down the line of greatest slope. Simultaneously, particle Q is projected up the same line of greatest slope at a speed of 10 m s-1. The coefficient of friction between each particle and the plane is 0.6.

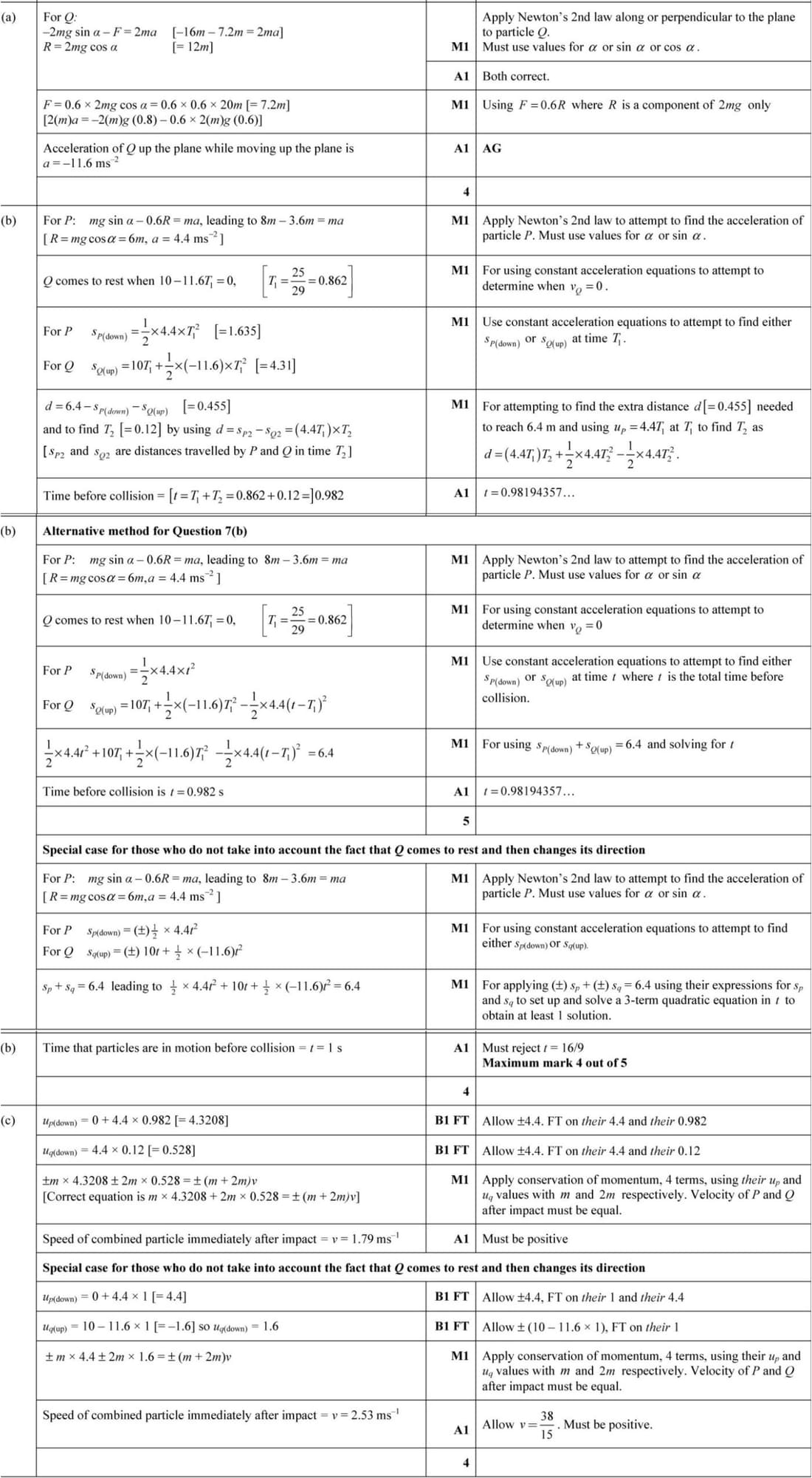

- Show that the acceleration of Q up the plane is \\-11.6\\ m s-2.
- Find the time for which the particles are in motion before they collide.
- The particles coalesce on impact. Find the speed of the combined particle immediately after the impact.
