Nov 2019 p42 q2
3376

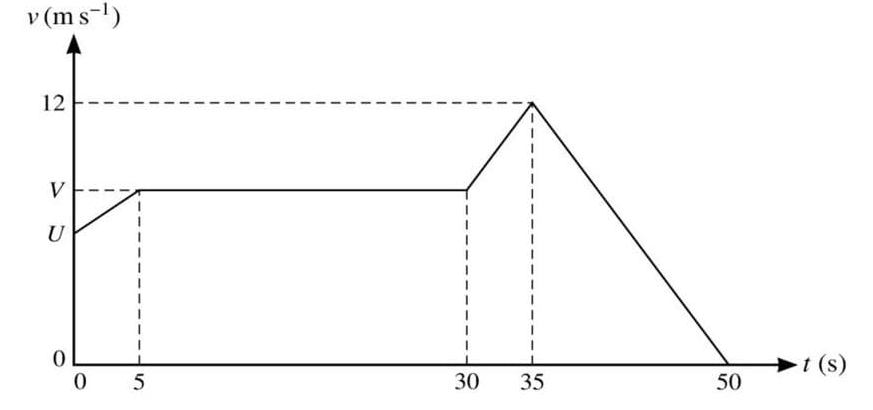

The diagram shows a velocity-time graph which models the motion of a tractor. The graph consists of four straight line segments. The tractor passes a point O at time \(t = 0\) with speed \(U \text{ m s}^{-1}\). The tractor accelerates to a speed of \(V \text{ m s}^{-1}\) over a period of 5 s, and then travels at this speed for a further 25 s. The tractor then accelerates to a speed of 12 \(\text{ m s}^{-1}\) over a period of 5 s. The tractor then decelerates to rest over a period of 15 s.

  1. Given that the acceleration of the tractor between \(t = 30\) and \(t = 35\) is \(0.8 \text{ m s}^{-2}\), find the value of \(V\).
  2. Given also that the total distance covered by the tractor in the 50 seconds of motion is 375 m, find the value of \(U\).
problem image 3376
