9709 P63 - Jun 2016 - Q2
2490
A group of children played a computer game which measured their time in seconds to perform a certain task. A summary of the times taken by girls and boys in the group is shown below.
| Minimum | Lower quartile | Median | Upper quartile | Maximum | |
|---|---|---|---|---|---|
| Girls | 5 | 5.5 | 7 | 9 | 13 |
| Boys | 4 | 6 | 8.5 | 11 | 16 |

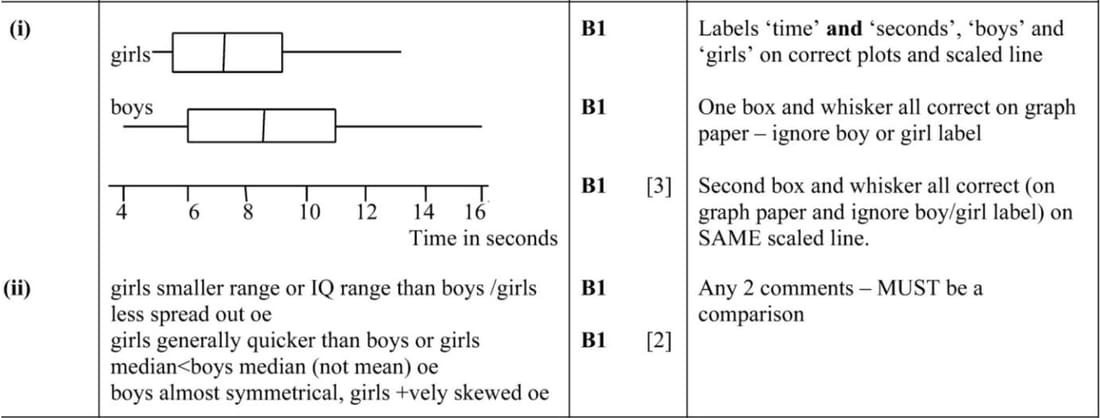

- On graph paper, draw two box-and-whisker plots in a single diagram to illustrate the times taken by girls and boys to perform this task.
- State two comparisons of the times taken by girls and boys.
