9709 P12 - Nov 2014 - Q7
2240

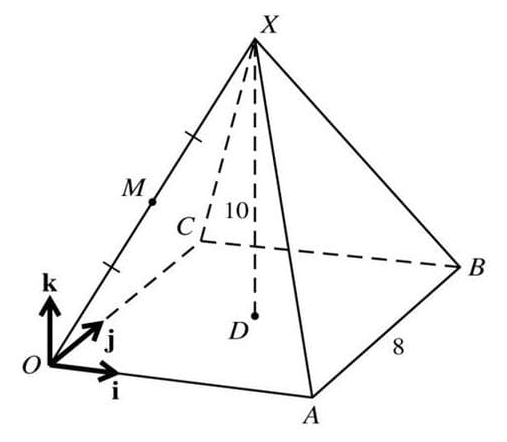

The diagram shows a pyramid \(OABCX\). The horizontal square base \(OABC\) has side 8 units and the centre of the base is \(D\). The top of the pyramid, \(X\), is vertically above \(D\) and \(XD = 10\) units. The mid-point of \(OX\) is \(M\). The unit vectors \(\mathbf{i}\) and \(\mathbf{j}\) are parallel to \(\overrightarrow{OA}\) and \(\overrightarrow{OC}\) respectively and the unit vector \(\mathbf{k}\) is vertically upwards.
(i) Express the vectors \(\overrightarrow{AM}\) and \(\overrightarrow{AC}\) in terms of \(\mathbf{i}\), \(\mathbf{j}\) and \(\mathbf{k}\).
(ii) Use a scalar product to find angle \(MAC\).
