9709 P13 - Jun 2018 - Q9
2232

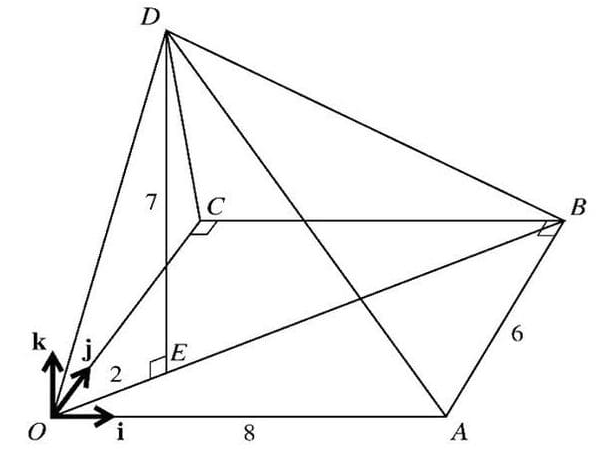

The diagram shows a pyramid OABCD with a horizontal rectangular base OABC. The sides OA and AB have lengths of 8 units and 6 units respectively. The point E on OB is such that OE = 2 units. The point D of the pyramid is 7 units vertically above E. Unit vectors i, j and k are parallel to OA, OC and ED respectively.

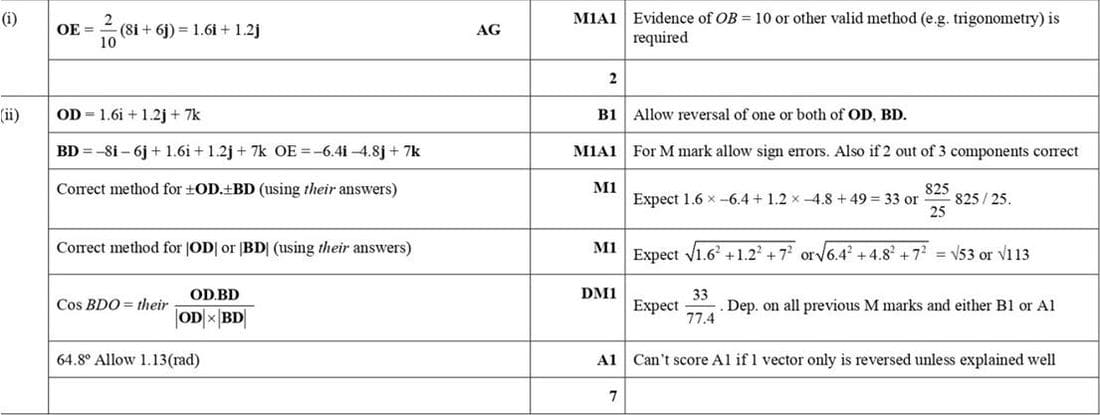

(i) Show that \(\overrightarrow{OE} = 1.6\mathbf{i} + 1.2\mathbf{j}\).
(ii) Use a scalar product to find angle BDO.
