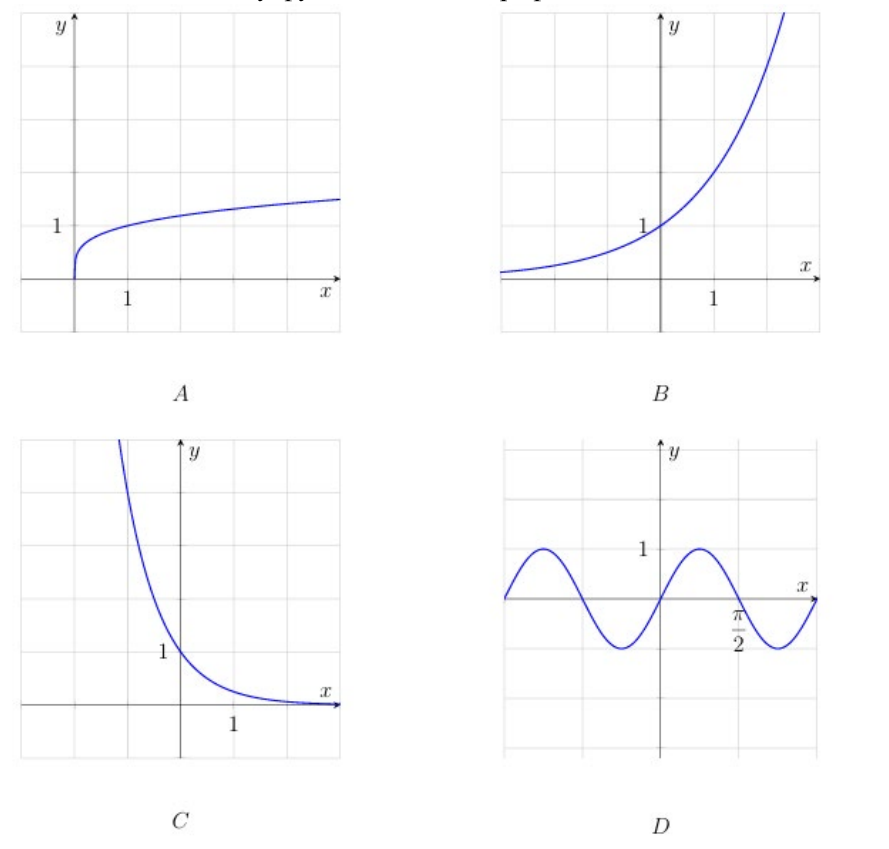

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\log_4 x\)
- \(y=\left(\frac14\right)^x\)
- \(y=\sqrt[4]{x}\)
- \(y=\tan 2x\)
- \(y=\sin 2x\)
- \(y=2^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

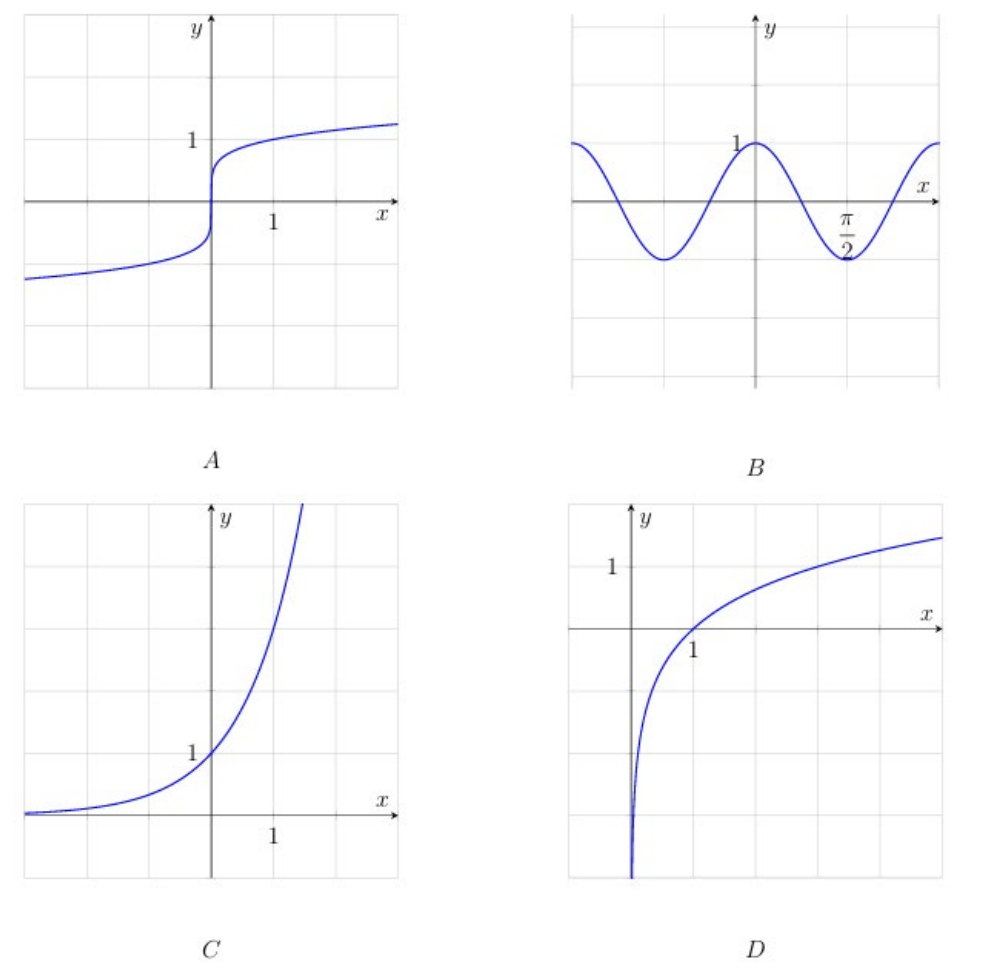

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\sin 2x\)
- \(y=\cos 2x\)
- \(y=\log_3 x\)
- \(y=\left(\frac14\right)^x\)
- \(y=\sqrt[5]{x}\)
- \(y=3^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

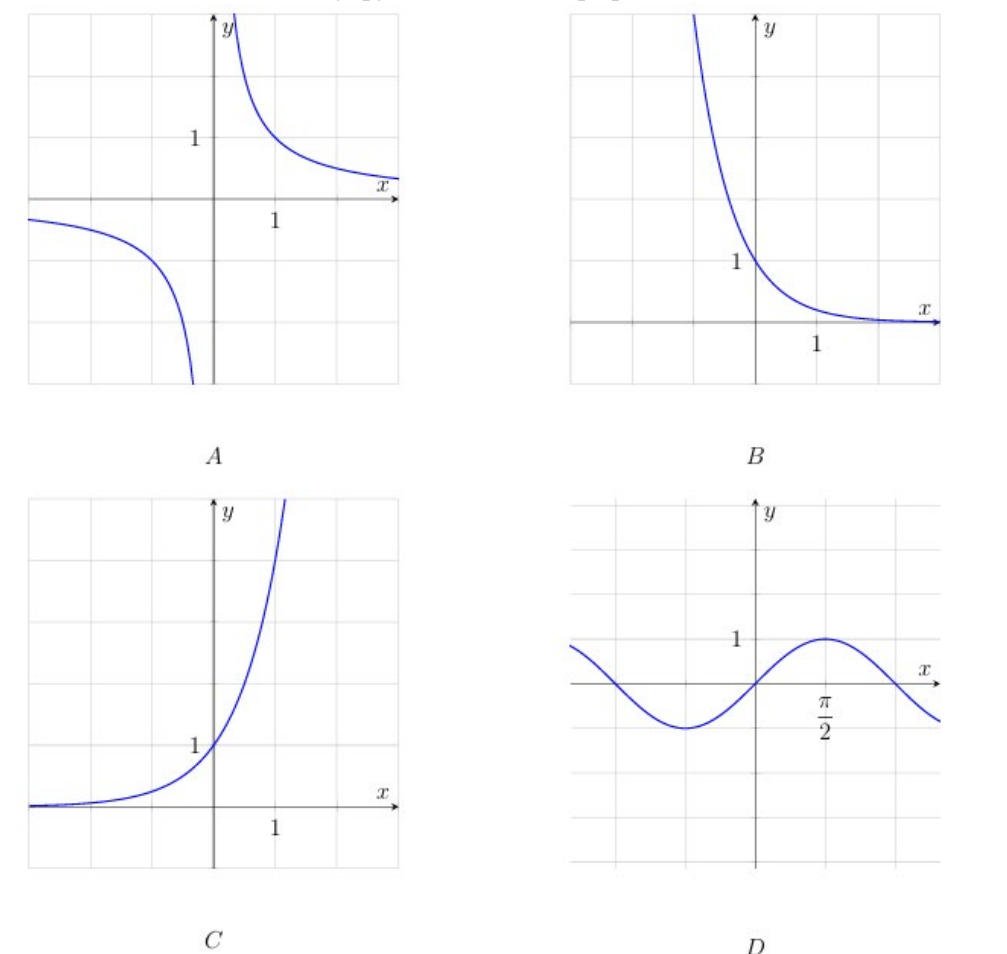

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\frac1x\)
- \(y=\left(\frac15\right)^x\)
- \(y=\sqrt[5]{x}\)
- \(y=\sin x\)
- \(y=\cos x\)
- \(y=4^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

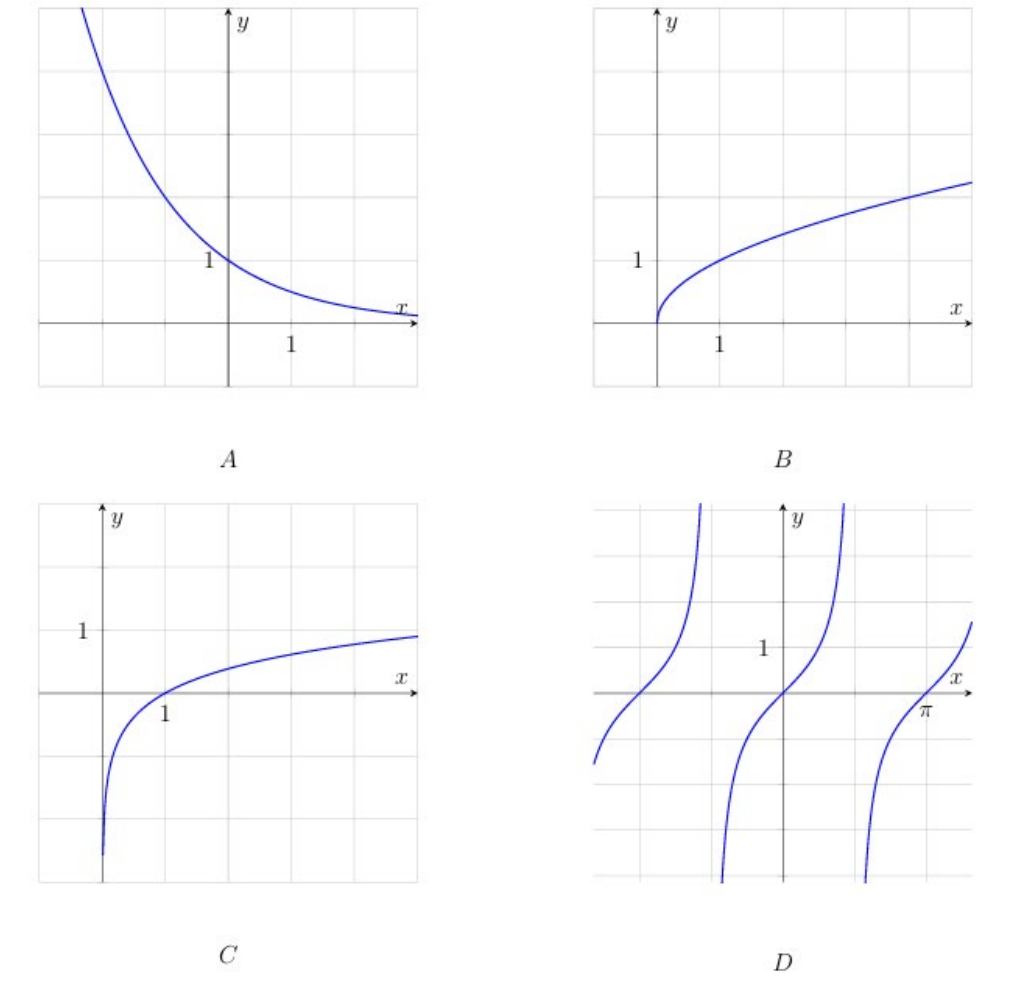

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\sqrt{x}\)
- \(y=\log_6 x\)
- \(y=\left(\frac12\right)^x\)
- \(y=\sin x\)
- \(y=\tan x\)
- \(y=2^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

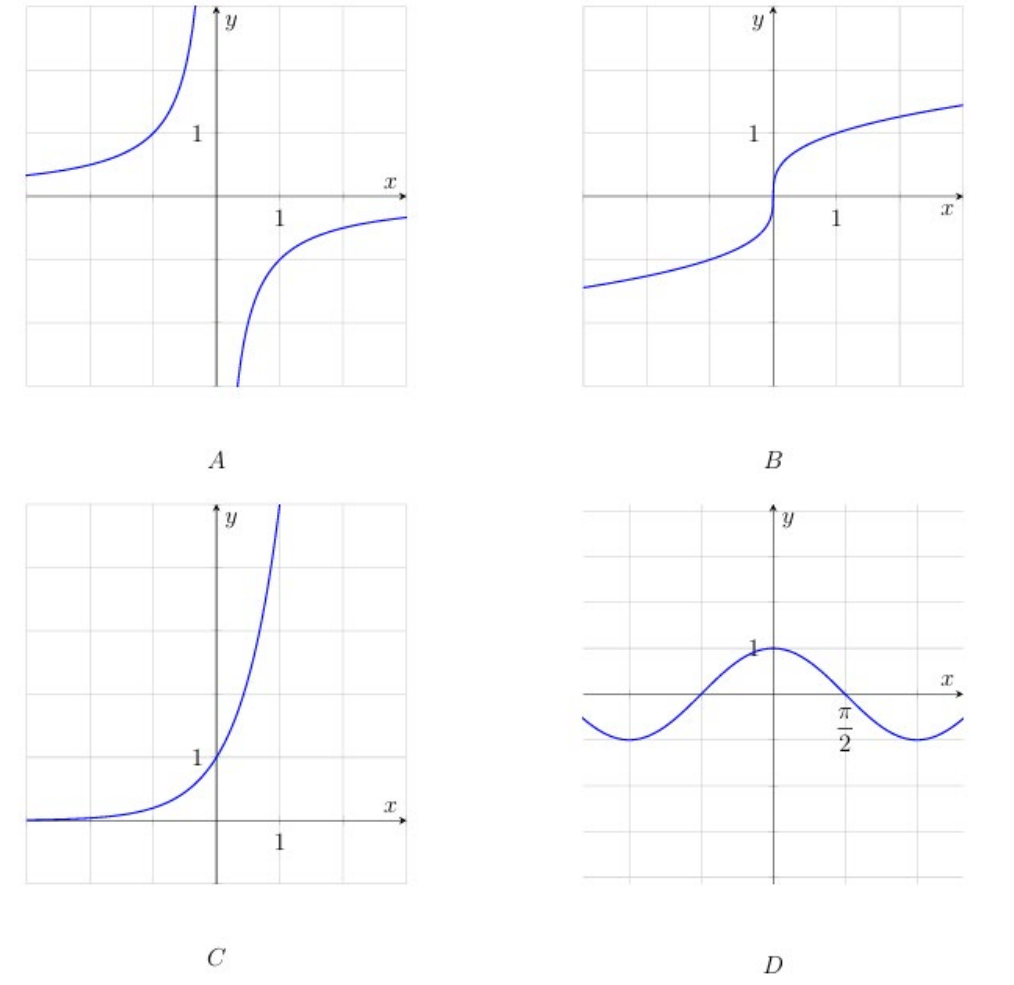

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\sqrt[4]{x}\)
- \(y=\sqrt[3]{x}\)
- \(y=-\frac1x\)
- \(y=\sin x\)
- \(y=\cos x\)
- \(y=5^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

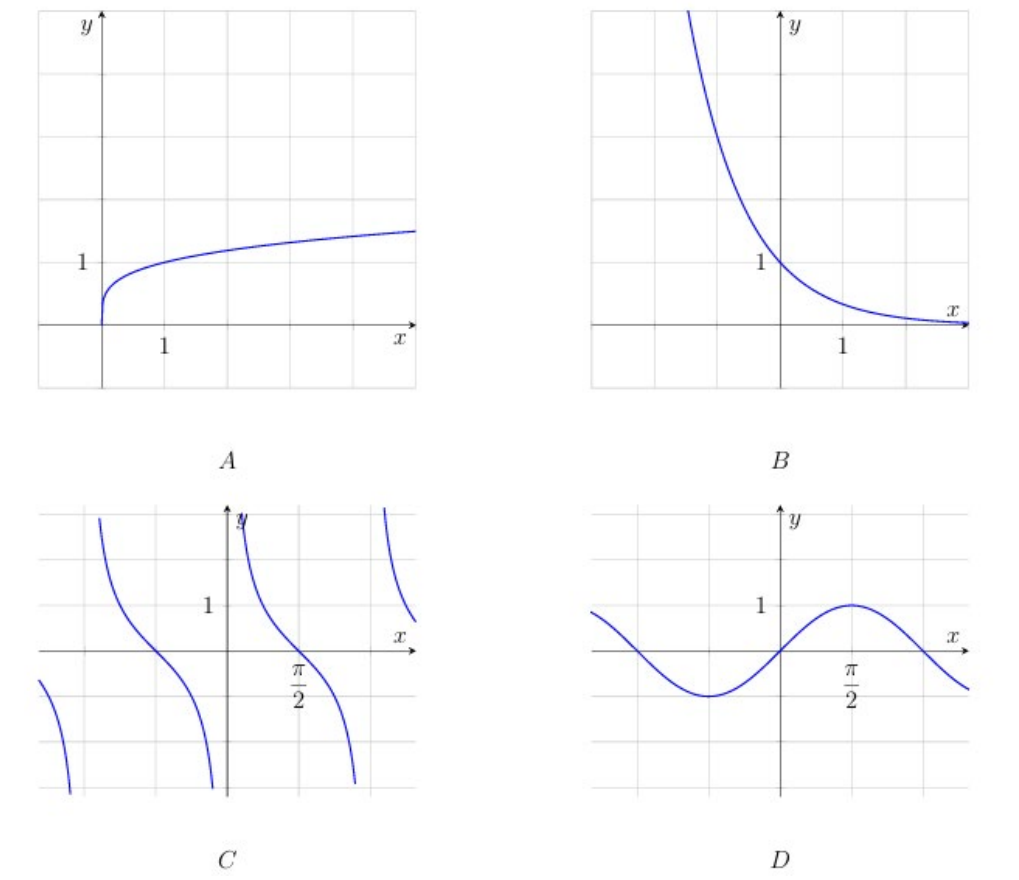

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=3^x\)
- \(y=\sqrt[4]{x}\)
- \(y=\sqrt[3]{x}\)
- \(y=\sin x\)
- \(y=\cot x\)
- \(y=\left(\frac13\right)^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

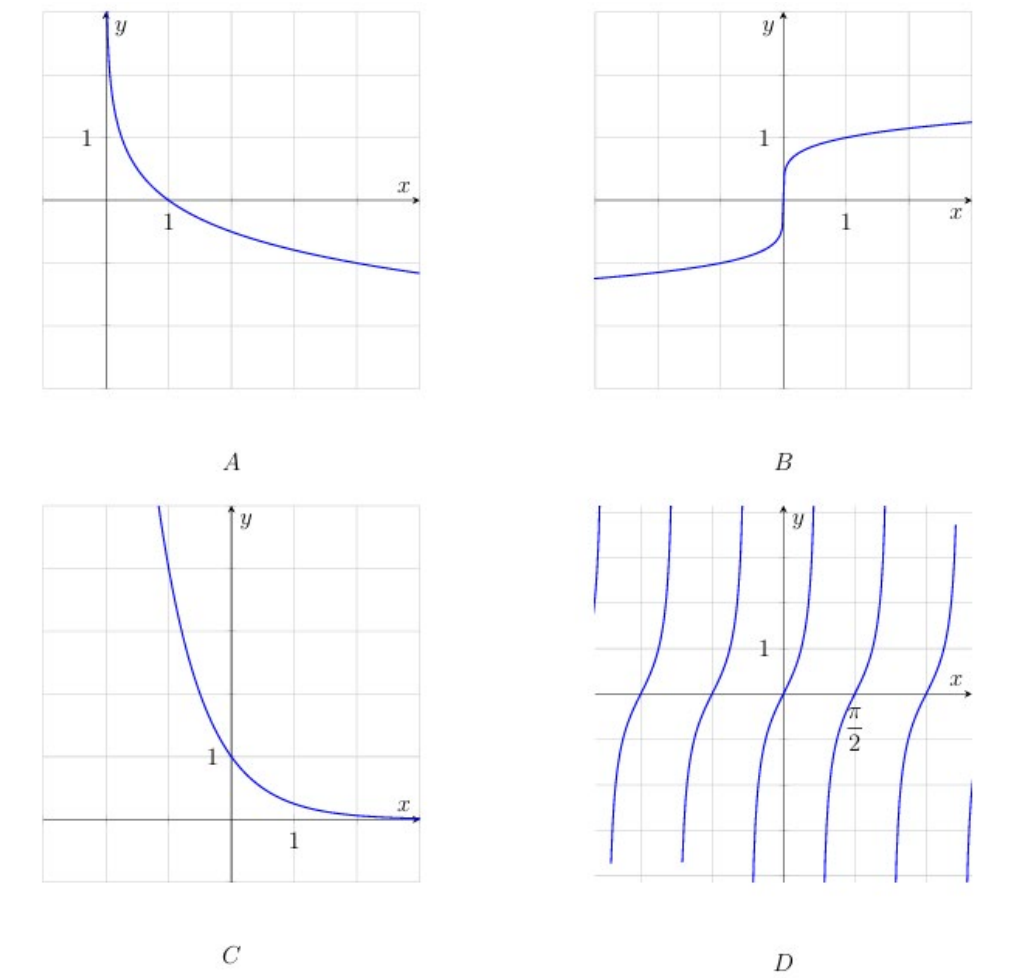

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\sin 2x\)
- \(y=\tan 2x\)
- \(y=4^x\)
- \(y=\log_{1/4} x\)
- \(y=\sqrt[3]{x}\)
- \(y=\left(\frac14\right)^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

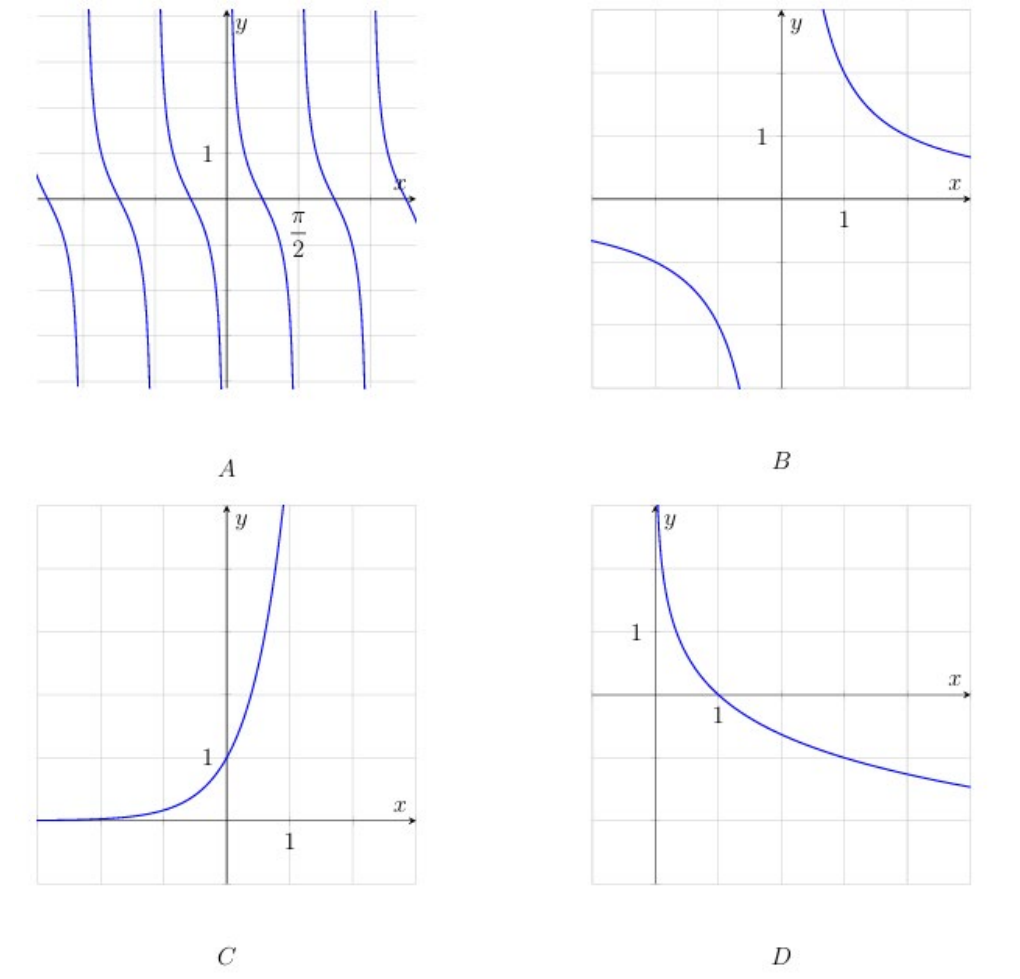

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=6^x\)
- \(y=\log_2 x\)
- \(y=\log_{1/3} x\)
- \(y=\sin 2x\)
- \(y=\cot 2x\)
- \(y=\frac{2}{x}\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

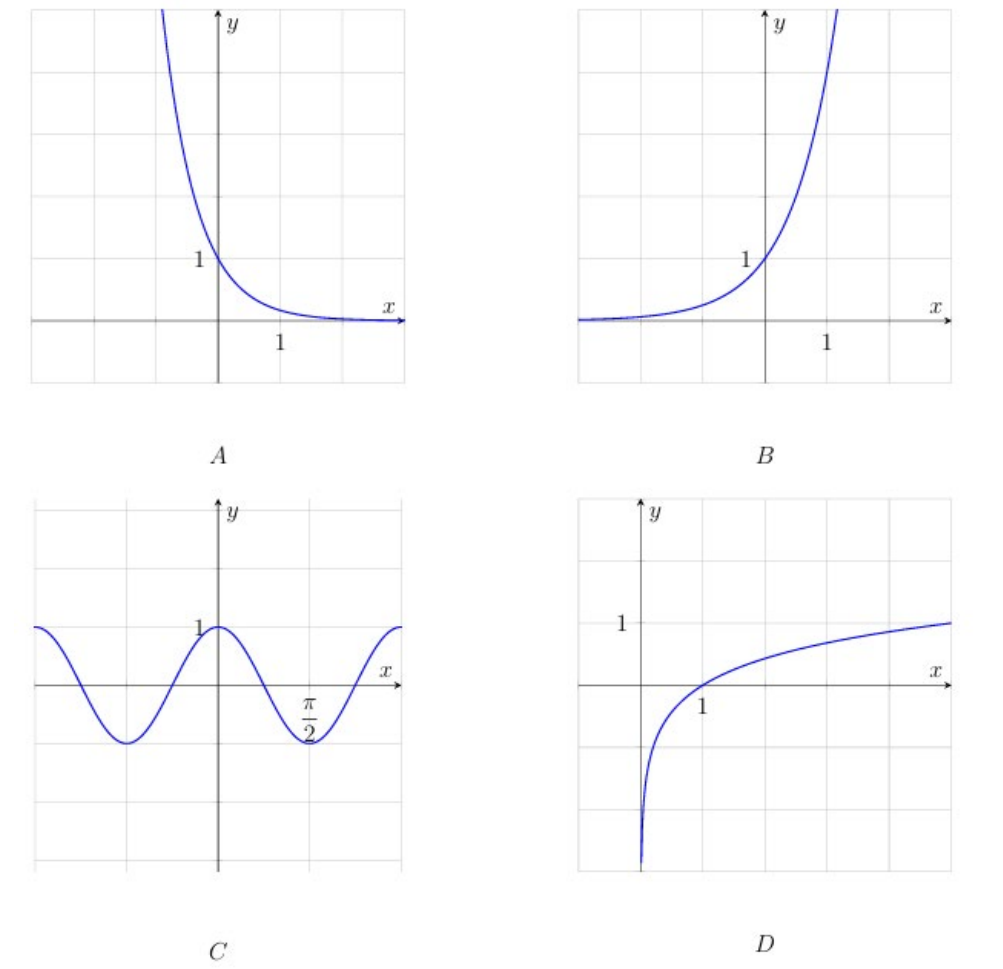

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\cos 2x\)
- \(y=\cot 2x\)
- \(y=4^x\)
- \(y=\sqrt{x}\)
- \(y=\log_5 x\)
- \(y=\left(\frac16\right)^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

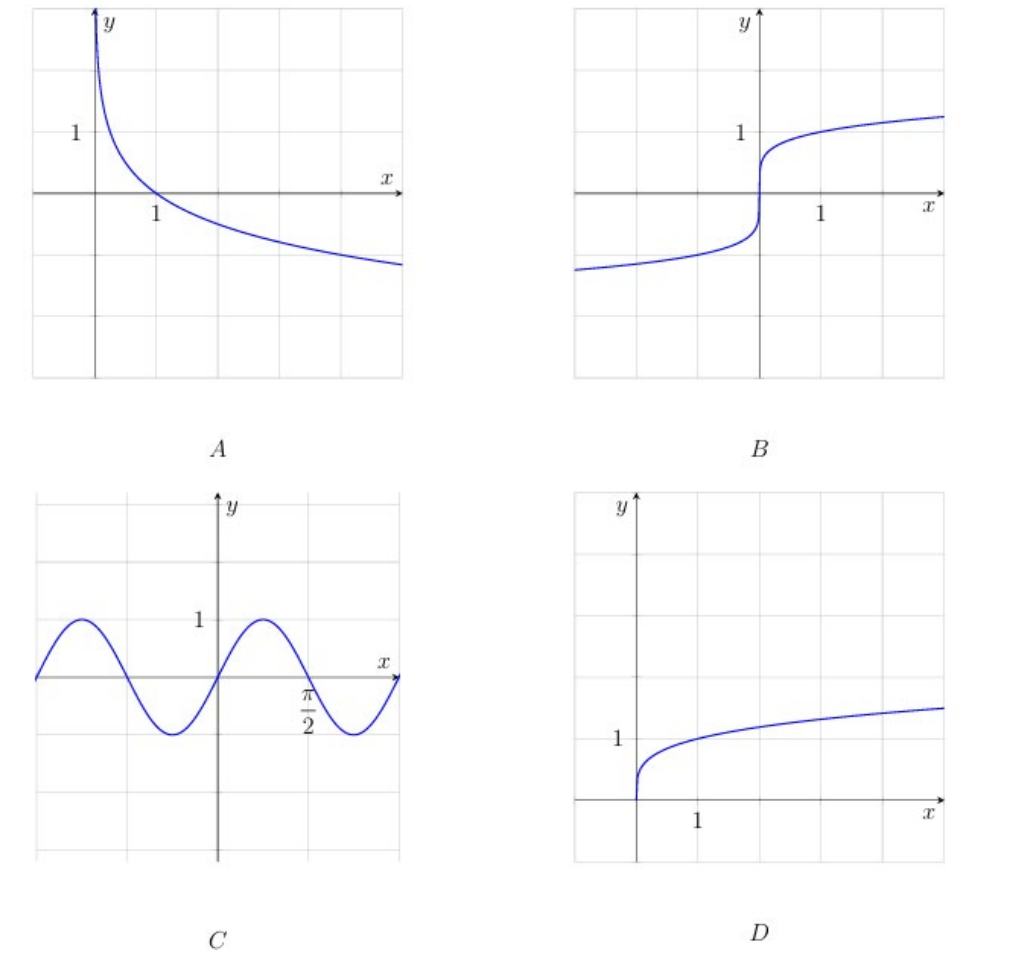

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\sqrt[5]{x}\)
- \(y=\log_{1/4} x\)
- \(y=\log_4 x\)
- \(y=\cos 2x\)
- \(y=\sin 2x\)
- \(y=\sqrt[4]{x}\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

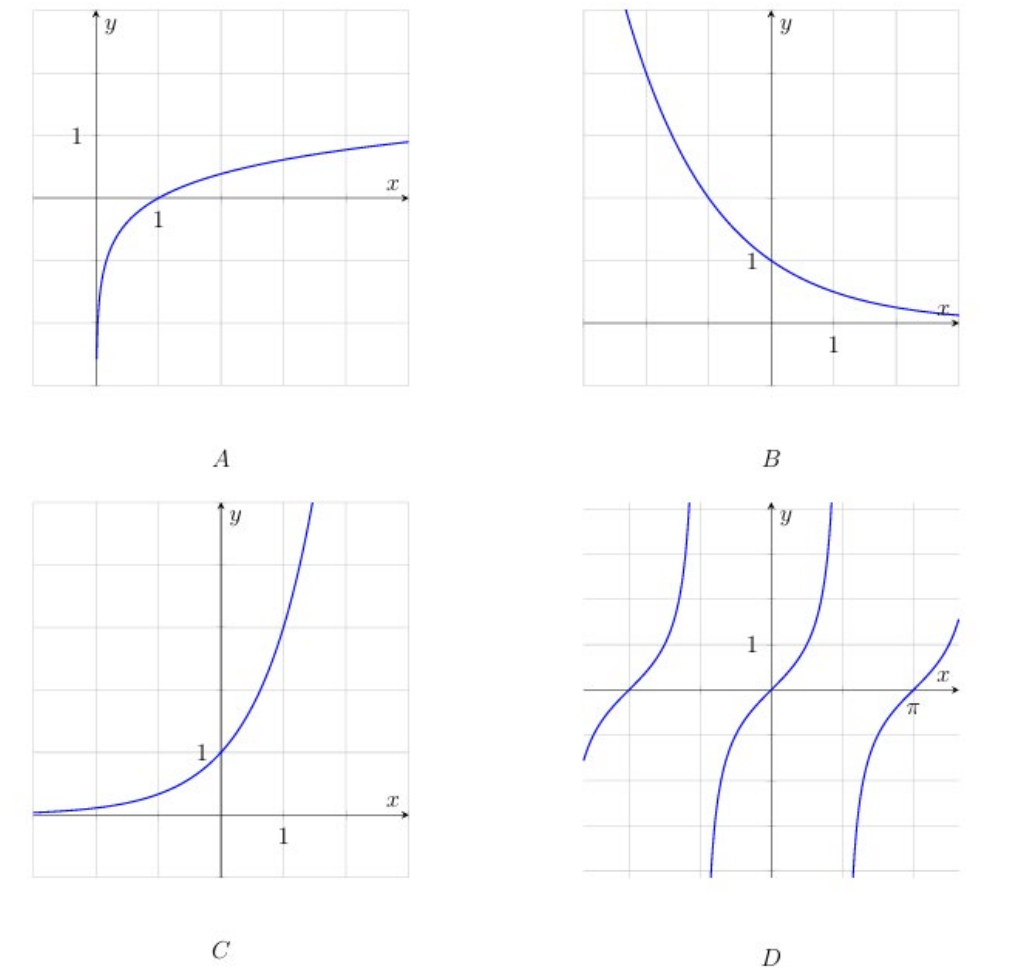

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\left(\frac12\right)^x\)
- \(y=\log_{1/6} x\)
- \(y=\log_6 x\)
- \(y=\cot x\)
- \(y=\tan x\)
- \(y=3^x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

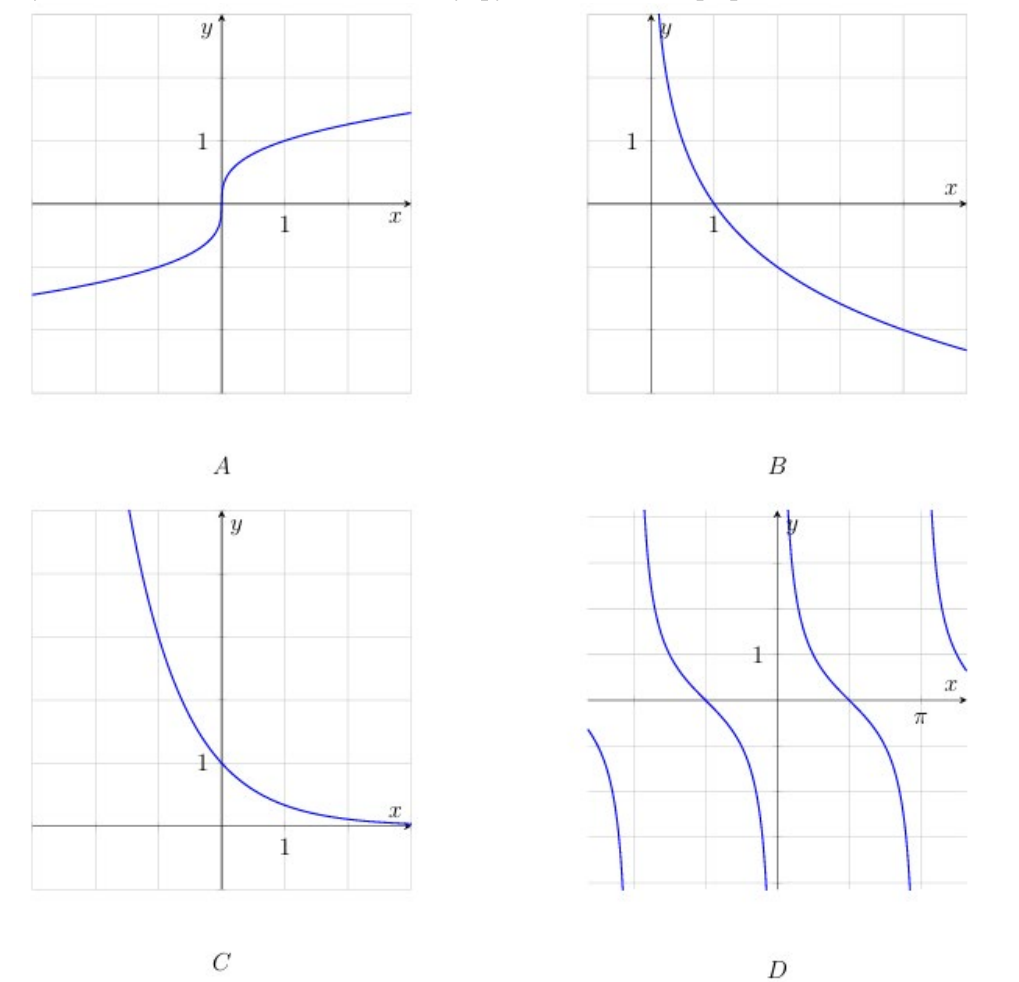

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\log_{1/2} x\)
- \(y=\log_2 x\)
- \(y=\left(\frac13\right)^x\)
- \(y=\cot x\)
- \(y=\cos x\)
- \(y=\sqrt[3]{x}\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

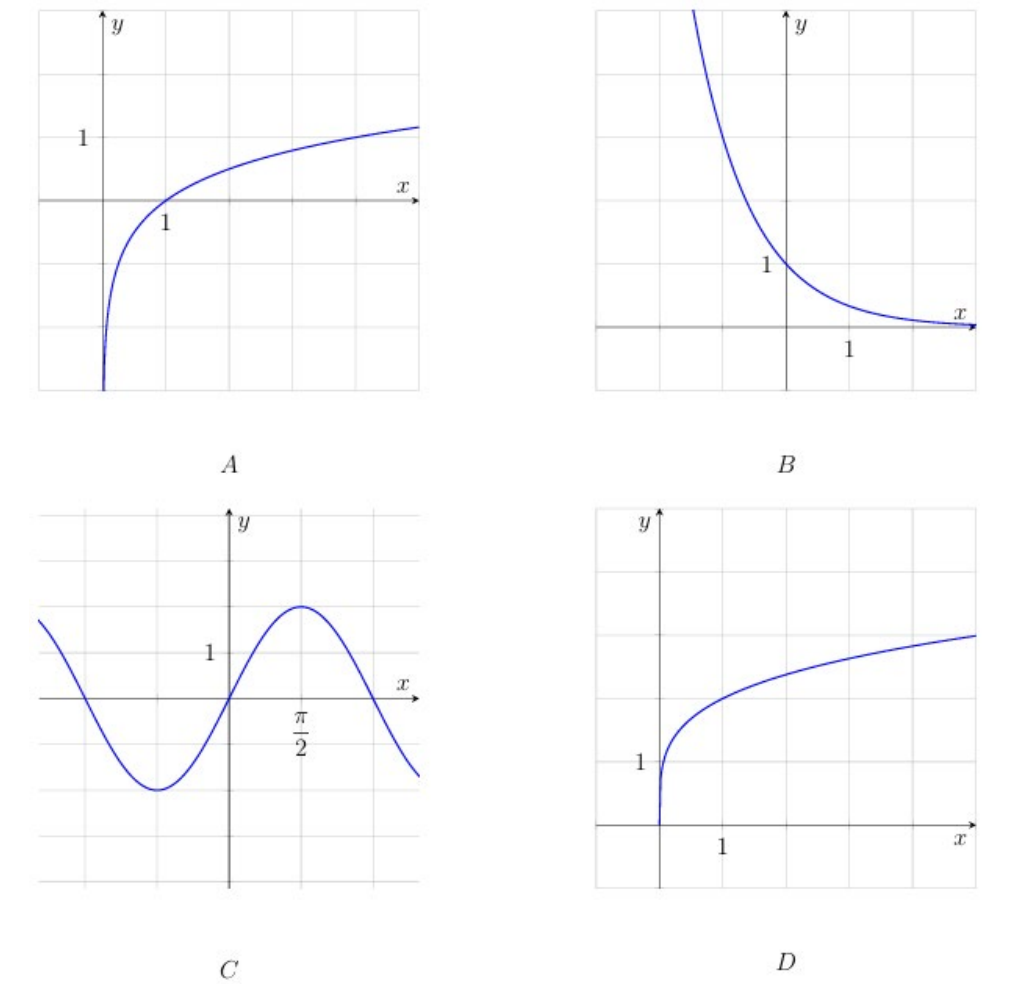

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=2\sqrt[4]{x}\)
- \(y=\log_{1/4} x\)
- \(y=\log_4 x\)
- \(y=\left(\frac13\right)^x\)
- \(y=2\sin x\)
- \(y=2\cos x\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

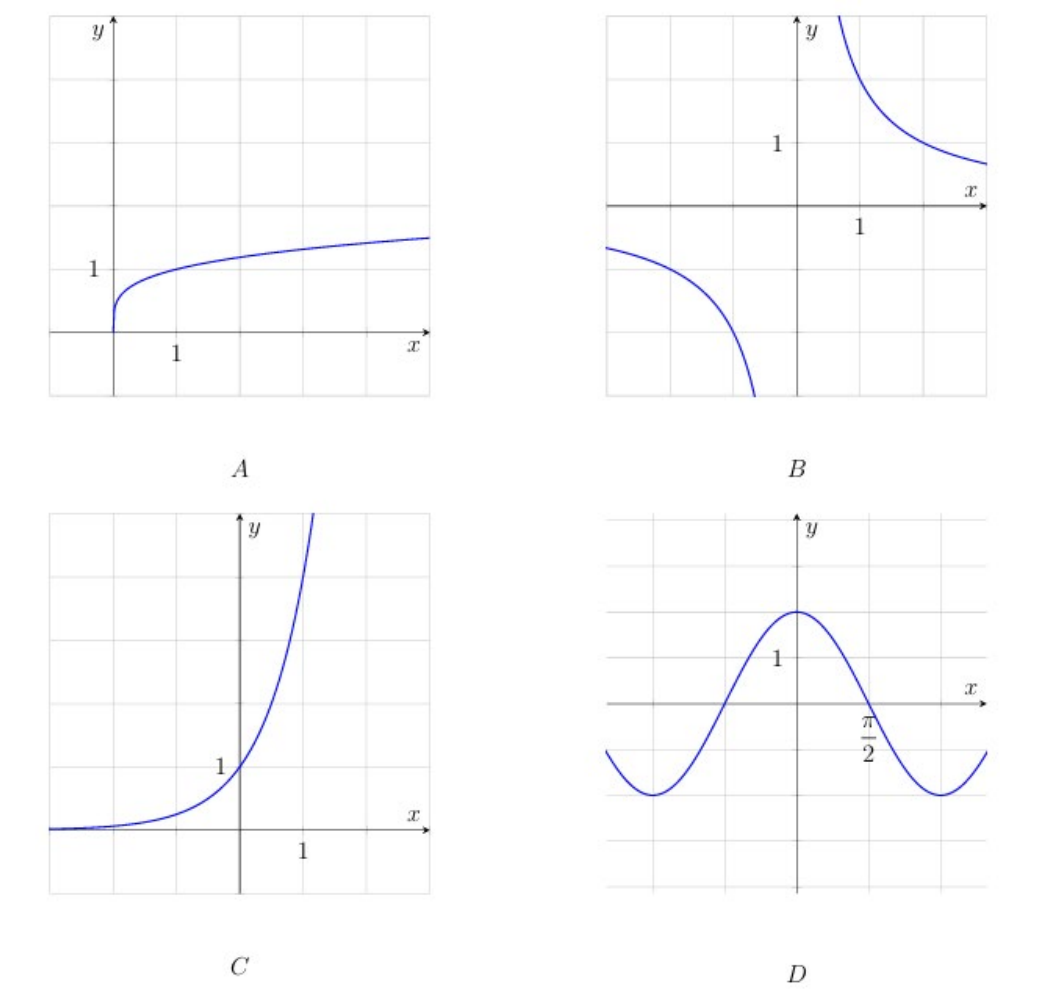

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=\log_{1/5} x\)
- \(y=\sqrt[6]{x}\)
- \(y=4^x\)
- \(y=2\sin x\)
- \(y=2\cos x\)
- \(y=\frac{2}{x}\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

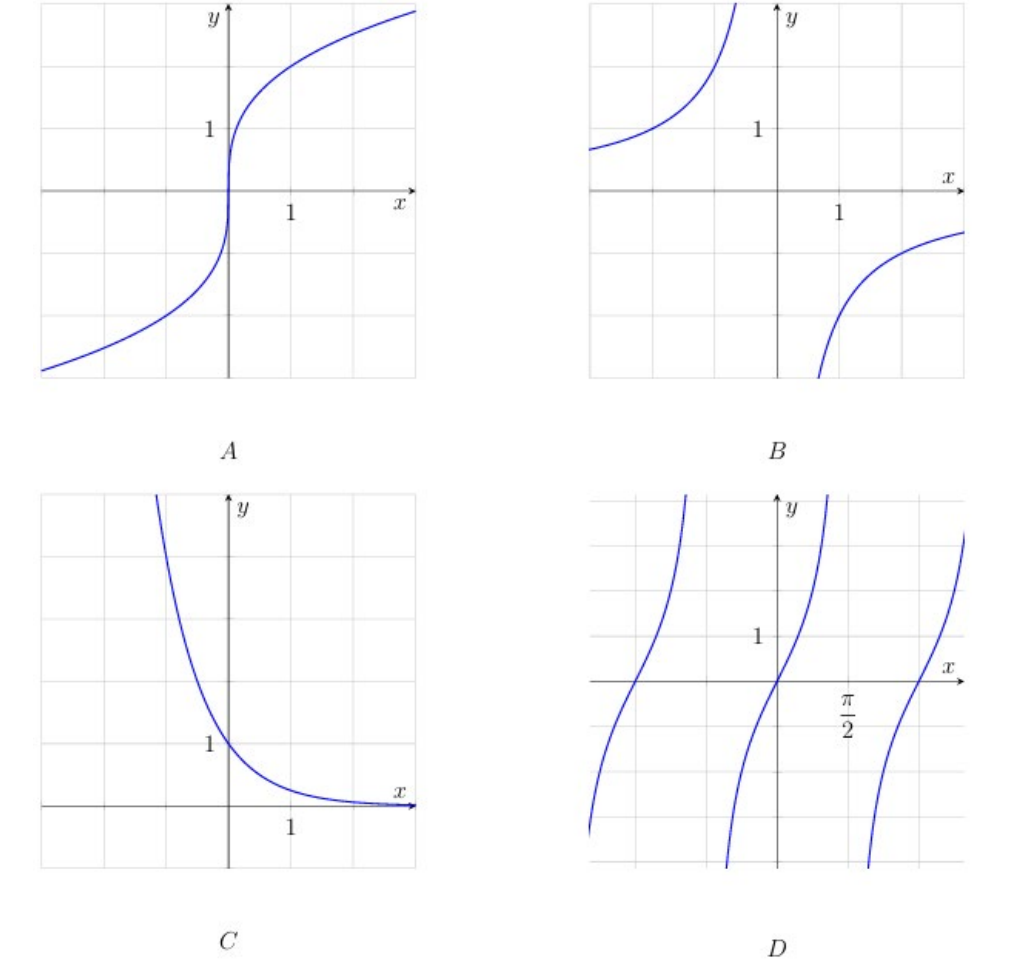

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=2\cos x\)
- \(y=2\tan x\)
- \(y=-\frac{2}{x}\)
- \(y=\frac{2}{x}\)
- \(y=\left(\frac14\right)^x\)
- \(y=2\sqrt[3]{x}\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.

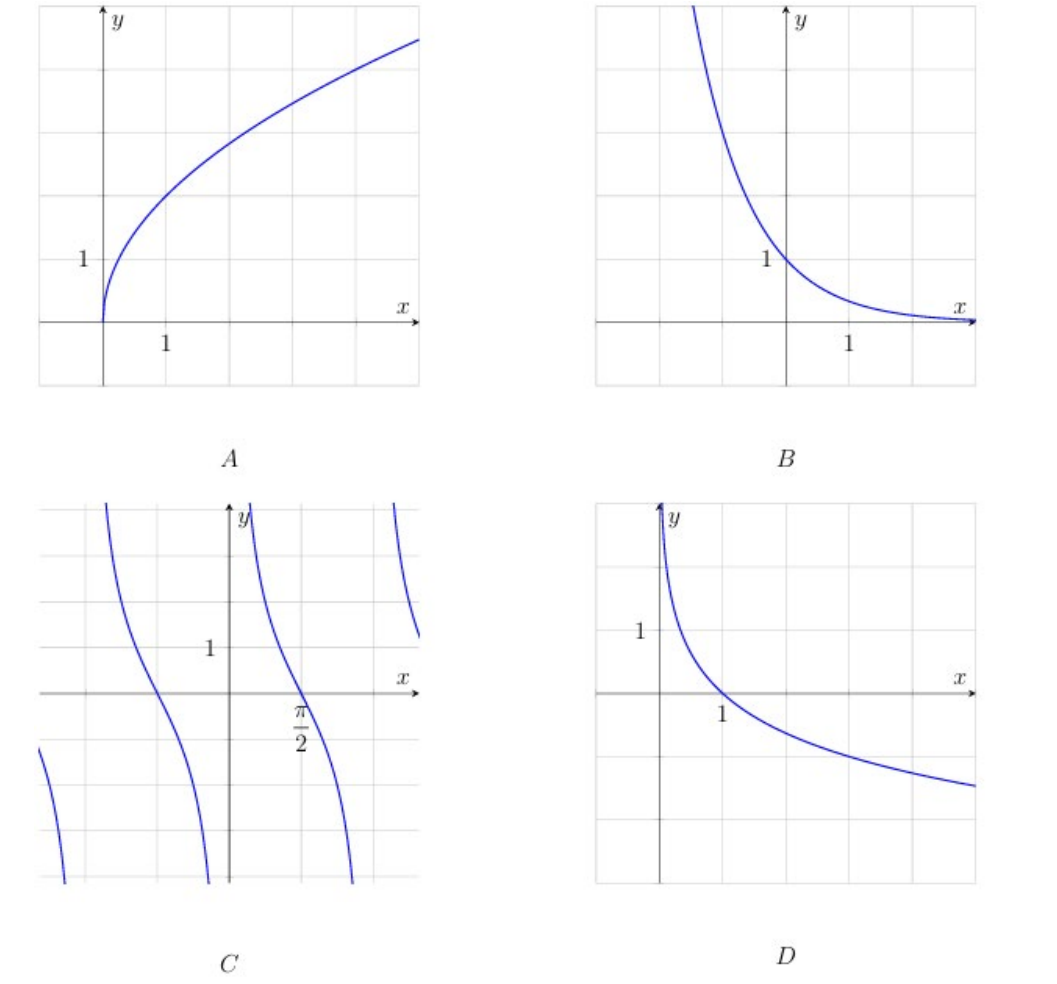

Function and its graph
Difficulty: ★★☆
Four of the six functions listed below are shown on the diagram. Match each graph with its function.
Functions:
- \(y=2\sqrt[3]{x}\)
- \(y=\log_{1/3} x\)
- \(y=\left(\frac13\right)^x\)
- \(y=2\cot x\)
- \(y=2\sin x\)
- \(y=2\sqrt{x}\)
| A | B | C | D | |
|---|---|---|---|---|
| Answer |
Write your answer as a four-digit code with no spaces: the function number for A, then for B, then for C, then for D.
